梅花槽盘头自攻钉 NF E 25-654 - 2001

选择规格尺寸点击↓

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

尺寸单位: mm

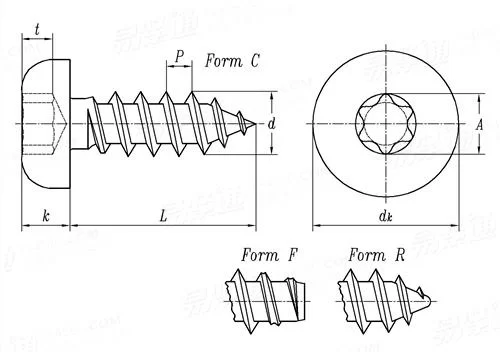

法国NF E25-654 - 2001 NF25-654 25-654NF 梅花槽盘头自攻钉

扫一扫分享

单重计算公差

螺纹规格
d

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

P	螺距
d_k	最大值
d_k	最小值
k	最大值
k	最小值
槽号
A	参考值
t	最大值
t	最小值

1.1	1.3	1.4	1.6	1.8	1.8
5.6	7	8	9.5	11	12
5.3	6.64	7.64	9.14	10.57	11.57
2.4	2.6	3.1	3.7	4	4.6
2.15	2.35	2.8	3.4	3.7	4.3
10	15	20	25	25	30
2.8	3.35	3.95	4.5	4.5	5.6
1.27	1.4	1.8	2.03	2.03	2.42
1.01	1.14	1.42	1.65	1.65	2.02

引用参考

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 5280 - 2002

自攻螺钉用螺纹

注：技术数据仅供参考，请以官方原件为准！
