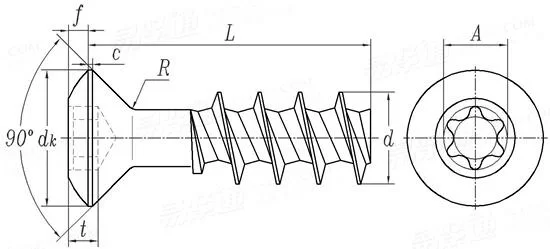

梅花槽半沉头自攻螺钉【PT-K 螺纹】 YJT 4067 (WN1453C)

选择规格尺寸点击↓

100

尺寸单位: mm

企标YJT 4067 (WN1453C) YJT4067 4067YJT 梅花槽半沉头自攻螺钉【PT-K 螺纹】

扫一扫分享

单重计算公差

千件重及价格计算千件重 : kg x 元/kg = 元/千件

默认密度 g/cm³

螺纹规格

100

d
d_k
c	最大值
f
R
槽号
A	参考
t	最小值
	最大值

1.8	2.2	2.5	3	3.5	4	4.5	5	6	7	8	10
3	3.8	4.7	5.6	6.5	7.5	7.5	9.2	11	12.5	14.5	14.5
0.3	0.35	0.55	0.55	0.55	0.65	0.65	0.75	0.85	0.85	0.9	0.9
0.4	0.5	0.6	0.75	0.9	1	1	1.25	1	1.8	2	2
0.6	0.5	0.7	0.8	0.95	1	1.8	1.3	1.6	1.8	3.2	2
T6	T6	T8	T10	T15	T20	T20	T25	T30	T40	T40	T40
1.75	1.75	2.4	2.8	3.35	3.95	3.95	4.5	5.6	6.75	6.75	6.75
0.65	0.7	0.9	1	1.2	1.4	1.4	1.6	2	2.7	2.7	2.7
0.85	0.85	1.15	1.3	1.5	1.8	1.8	2	2.4	3.2	3.2	3.2

千件钢制重≈kg

引用参考

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 5280 - 2002

自攻螺钉用螺纹

注：技术数据仅供参考，请以官方原件为准！
