梅花槽圆头凸缘（华司）自攻钉 DIN 34819 - 2008

选择规格尺寸点击↓

ST2.9

ST3.5

ST4.2

ST4.8

(ST5.5)

ST6.3

括号内尺寸为非优选

尺寸单位: mm

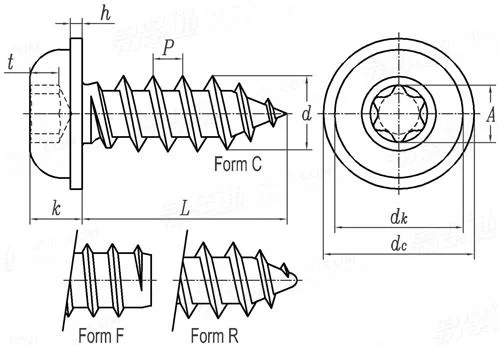

德标DIN 34819 - 2008 DIN34819 34819DIN 梅花槽圆头凸缘（华司）自攻钉

扫一扫分享

公差

千件重及价格计算千件重 : kg x 元/kg = 元/千件

默认密度 g/cm³

螺纹规格
d

ST2.9

ST3.5

ST4.2

ST4.8

(ST5.5)

ST6.3

P	螺距
d_c	最大值=公称
	最小值
k	最大值=公称
	最小值
d_k	最大值
	最小值
h	最大值
	最小值
槽号
A	参考
t	最大值
	最小值

1.1	1.3	1.4	1.6	1.8	1.8
7.5	9	10	11.5	13	14.5
6.92	8.42	9.42	10.8	12.3	13.8
2.35	2.6	3.05	3.55	3.8	4.55
2.1	2.35	2.75	3.25	3.5	4.25
6.24	7.29	8.29	9.29	10.09	12.35
5.76	6.71	7.71	8.71	9.51	11.65
0.8	0.9	1.1	1.35	1.6	1.8
0.6	0.7	0.9	1.05	1.2	1.4
10	15	20	25	25	30
2.8	3.3	3.9	4.5	4.5	5.6
1.27	1.4	1.8	2.03	2.03	2.42
1.01	1.14	1.42	1.65	1.65	2.02

千件钢制重≈kg

引用参考

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 5280 - 2002

自攻螺钉用螺纹

注：技术数据仅供参考，请以官方原件为准！
