梅花槽盘头自攻螺钉 JASO F 116 - 2005

选择规格尺寸点击↓

ST2

ST2.5

ST3

ST3.5

ST4.0

ST4.5

ST5

ST6

ST8

尺寸单位: mm

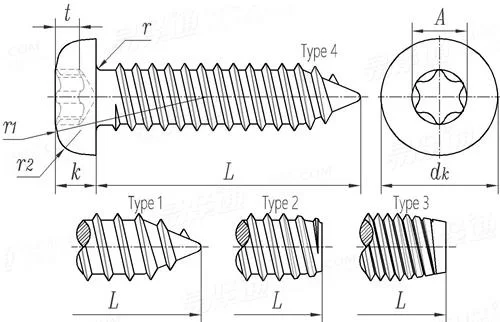

日本汽车工业协会标准JASO F116 - 2005 JASO116 116JA 梅花槽盘头自攻螺钉

扫一扫分享

单重计算公差

螺纹尺寸
d

ST2 ^①

ST2.5 ^①

ST3

ST3.5

ST4.0

ST4.5

ST5

ST6

ST8

槽号
A
d_k	最大值=公称
d_k	最小值
k	公称
	最大值
	最小值
r₁	≈
r₂	≈
t	最大值
t	最小值
r	最大值

T6	T8	T10	T15	T20	T20	T25	T30	T40
1.727	2.367	2.794	3.327	3.911	3.911	4.483	5.575	6.705
3.5	4.5	5.5	6	7	8	9	10.5	14
3.1	4.1	5	5.5	6.5	7.4	8.4	9.8	13.2
1.3	1.7	2	2.3	2.6	2.9	3.3	3.9	5.2
1.4	1.8	2.15	2.45	2.75	3.05	3.45	4.1	5.4
1.2	1.6	1.85	2.15	2.45	2.75	3.15	3.7	5
4.5	6	7	8	9	11	12	14	18
0.6	0.8	1	1.1	1.3	1.5	1.6	1.9	2.6
0.65	0.85	1.05	1.2	1.4	1.4	1.6	1.9	2.6
0.5	0.7	0.85	1	1.2	1.2	1.4	1.65	2.35
0.3	0.3	0.4	0.4	0.5	0.5	0.6	0.7	0.9

①,ST2，ST2.5不适用于Type 1。

引用参考

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 5280 - 2002

自攻螺钉用螺纹

注：技术数据仅供参考，请以官方原件为准！
