首页 产品与标准 ASME B 18.6.5M (T10) - 2000 (R2010) 米制米字槽沉头自攻螺钉 [Table 10]

米制米字槽沉头自攻螺钉 [Table 10] ASME B 18.6.5M (T10) - 2000 (R2010)

选择规格尺寸 点击↓

ST2.2

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

ST8

ST9.5

M2

M2.5

M3

M3.5

M4

M5

M6

M8

M10

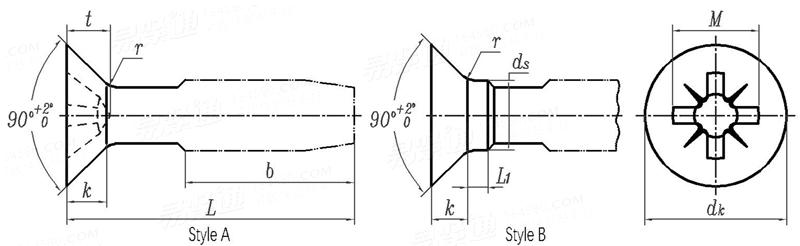

ASME B 18.6.5M (T10) - 2000 (R2010) 米制米字槽沉头自攻螺钉 [Table 10]

尺寸单位: mm
美标ASME B18.6.5M (T10) - 2000 (R2010) ASM 米制米字槽沉头自攻螺钉 [Table 10]
ASME B 18.6.5M (T10) - 2000 (R2010) 米制米字槽沉头自攻螺钉 [Table 10]
扫一扫分享
单重计算 公差
螺纹规格
d
ST2.2 ST2.9 ST3.5 ST4.2 ST4.8 ST5.5 ST6.3 ST8 ST9.5
P 螺距
ds 最大值
最小值
dk 最大值
最小值
k 最大值
L1 最大值
最小值
r 最大值
最小值
M 参考值
t 参考值
b 最小值
槽号
螺纹及末端型式
0.8 1 1.3 1.4 1.6 1.8 1.8 2.1 2.1
- - - - - - - - -
- - - - - - - - -
3.8 5.5 7.3 8.4 9.3 10.3 11.3 15.8 18.3
3.5 5.2 6.9 8 8.9 9.9 10.9 15.4 17.8
1.1 1.7 2.3 2.6 2.8 3 3.1 4.6 5.2
- - - - - - - - -
- - - - - - - - -
0.8 1.2 1.4 1.6 2 2.2 2.4 3.2 4
0.4 0.6 0.7 0.8 1 1.1 1.2 1.6 2
2.2 3.08 4.14 4.44 4.98 6.4 6.66 8.82 9.84
1.56 2.08 2.38 2.68 3.24 3.54 3.78 5.06 6.12
13 17 21 25 29 33 38 38 38
0 1 2 2 2 3 3 4 4
AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT
螺纹规格
d
M2 M2.5 M3 M3.5 M4 M5 M6 M8 M10
P 螺距
ds 最大值
最小值
dk 最大值
最小值
k 最大值
L1 最大值
最小值
r 最大值
最小值
M 参考值
t 参考值
b 最小值
槽号
螺纹及末端型式
0.4 0.45 0.5 0.6 0.7 0.8 1 1.25 1.5
2 2.5 3 3.5 4 5 6 8 10
1.86 2.36 2.86 3.32 3.82 4.82 5.82 7.78 9.78
3.8 4.7 5.5 7.3 8.4 9.3 11.3 15.8 18.3
3.5 4.4 5.2 6.9 8 8.9 10.9 15.4 17.8
1.2 1.5 1.7 2.3 2.7 2.7 3.3 4.6 5
0.5 0.55 0.6 0.7 0.8 0.9 1.1 1.4 1.7
0.3 0.35 0.4 0.5 0.6 0.7 0.9 1.1 1.3
0.8 1 1.2 1.4 1.6 2 2.4 3.2 4
0.4 0.5 0.6 0.7 0.8 1 1.2 1.6 2
2.2 2.78 3.08 4.14 4.44 4.98 6.66 8.82 9.84
1.56 1.83 2.08 2.38 2.68 3.24 3.78 5.06 6.12
12 15 18 21 24 30 38 38 38
0 1 1 2 2 2 3 4 4
D,F,T D,F,T D,F,T D,F,T D,F,T D,F,T D,F,T D,F,T D,F,T
①,D，F和T型自攻螺钉应采用B型螺钉头。 AB，B，BF和BT型自攻螺钉应采用A型头。 对于B型头型，头下必须有台肩，A型和B型头型的其他尺寸应相同。
②,类似的ISO标准是 ISO 7050。

采用标准

引用标准

1 [美标]
ASME B 18.6.5M - 2000 (R2010)		 米制自攻螺钉用螺纹及末端型式
Metic threads and points for tapping screws
米制自攻螺钉用螺纹及末端型式

引用参考

GB /T 3098.5 - 2016
紧固件机械性能 - 自攻螺钉
GB /T 1172 - 1999
黑色金属硬度及强度换算值
GB /T 5267.1 - 2002
镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能
GB /T 193 - 2003
普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)
GB /T 5280 - 2002
自攻螺钉用螺纹
