首页 产品与标准 YJT 4058 (WN1413C) 十字槽沉头自攻螺钉【PT-K 螺纹】

十字槽沉头自攻螺钉【PT-K 螺纹】 YJT 4058 (WN1413C)

选择规格尺寸 点击↓

18

25

30

35

40

45

50

60

70

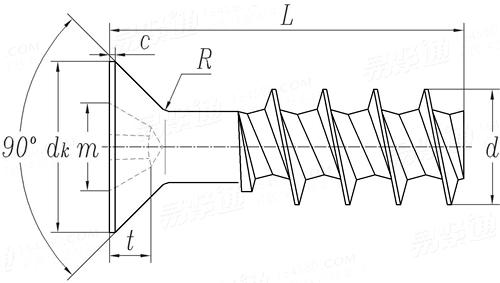

YJT 4058 (WN1413C) 十字槽沉头自攻螺钉【PT-K 螺纹】

尺寸单位: mm
企标YJT 4058 (WN1413C) YJT4058 4058YJT 十字槽沉头自攻螺钉【PT-K 螺纹】
YJT 4058 (WN1413C) 十字槽沉头自攻螺钉【PT-K 螺纹】
扫一扫分享
单重计算 公差
千件重及价格计算 千件重 : kg x 元/kg = 元/千件
默认密度 g/cm3
×

选择材料对应密度(g/cm3)

  • 碳钢 7.85
  • 不锈钢 8.1
  • 不锈钢 7.95
  • 不锈钢 7.7
  • 钛合金 4.5
  • 铝合金 2.8
  • 铜 8.89


在此选择或在计算页输入材料密度 密度表
公称长度L 注:选择后获得 相应重量
螺纹规格
18 25 30 35 40 45 50 60 70
d
dk
c 最小值
最大值
R
槽号
m H型
Z型
t H型 最小值
最大值
Z型 最小值
最大值
1.8 2.5 3 3.5 4 4.5 5 6 7
3 4.7 5.5 7.3 8.4 9 9.3 11.3 13.6
0.2 0.4 0.4 0.45 0.5 0.5 0.55 0.65 0.7
0.3 0.55 0.55 0.65 0.7 0.7 0.75 0.85 0.9
0.6 1 1.2 1.4 1.6 1.6 2 2.4 2.6
0 1 1 2 2 2 2 2 3
1.58 2.56 2.69 3.94 4.19 4.19 4.64 5.19 6.92
1.62 2.55 2.66 4.01 4.23 4.23 4.59 5.13 6.81
0.55 0.97 1.1 1.33 1.59 1.59 2.04 2.59 3.02
0.85 1.43 1.56 1.96 2.22 2.22 2.67 3.22 3.68
0.56 1.09 1.2 1.47 1.7 1.7 2.06 2.6 3.01
0.81 1.34 1.45 1.93 2.16 2.16 2.52 3.06 3.47
千件钢制重≈kg
- - - - - - - - -

引用参考

GB /T 3098.5 - 2016
紧固件机械性能 - 自攻螺钉
GB /T 1172 - 1999
黑色金属硬度及强度换算值
GB /T 5267.1 - 2002
镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能
GB /T 193 - 2003
普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)
GB /T 5280 - 2002
自攻螺钉用螺纹
注：技术数据仅供参考，请以官方原件为准！
