首页 产品与标准 AS /NZS 4407 - 1996 米制十字槽沉头自攻螺钉

米制十字槽沉头自攻螺钉 AS /NZS 4407 - 1996

选择规格尺寸 点击↓

ST2.2

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

ST8

ST9.5

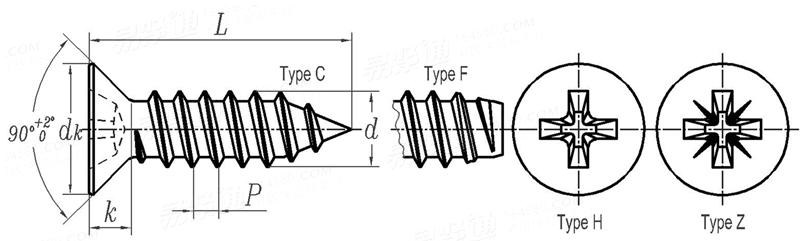

AS /NZS 4407 - 1996 米制十字槽沉头自攻螺钉

尺寸单位: mm
澳标AS /NZS4407 - 1996 AS4407 4407AS 米制十字槽沉头自攻螺钉
AS /NZS 4407 - 1996 米制十字槽沉头自攻螺钉
扫一扫分享
单重计算 公差
螺纹规格
d
ST2.2 ST2.9 ST3.5 ST4.2 ST4.8 ST5.5 ST6.3 ST8 ST9.5
P 螺距
dk 最大值
最小值
k 最大值
槽号
0.8 1.1 1.3 1.4 1.6 1.8 1.8 2.1 2.1
3.8 5.5 7.3 8.4 9.3 10.3 11.3 15.8 18.3
3.5 5.2 6.9 8 8.9 9.9 10.9 15.4 17.8
1.1 1.7 2.35 2.6 2.8 3 3.15 4.65 5.25
0 1 2 2 2 3 3 4 4

采用标准

引用参考

GB /T 3098.5 - 2016
紧固件机械性能 - 自攻螺钉
GB /T 1172 - 1999
黑色金属硬度及强度换算值
GB /T 5267.1 - 2002
镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能
GB /T 193 - 2003
普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)
GB /T 5280 - 2002
自攻螺钉用螺纹
注：技术数据仅供参考，请以官方原件为准！
