滚花高头螺钉 QJ 2384 - 1992

选择规格尺寸 点击↓

M3

M4

M5

M6

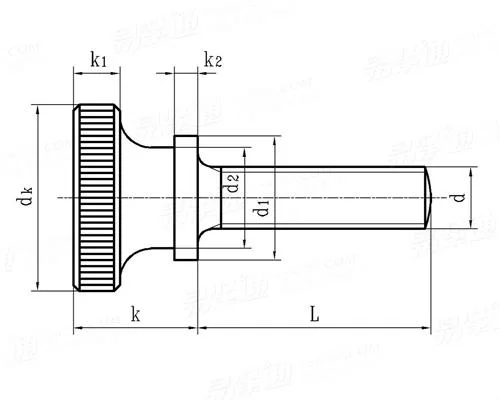

QJ  2384 - 1992 滚花高头螺钉

尺寸单位: mm
航天QJ 2384 - 1992 QJ2384 2384QJ 滚花高头螺钉
QJ  2384 - 1992 滚花高头螺钉
扫一扫分享
螺纹规格
d
M3 M4 M5 M6
dk 滚花前 最大值
最小值
k 最大值
最小值
k1
k2
d1
d2
11 12 16 20
10.73 11.73 15.73 19.67
7 8 10 12
6.78 7.78 9.78 11.57
2.8 3 4 5
1.2 1.5 2 2.5
6 8 10 12
5.2 6.4 9 11

技术条件和引用标准

材料
表面处理
H 62、HPb 59-1
钝化或镀装饰铬
注:技术数据仅供参考,请以官方原件为准!
