压紧螺钉 JB /T 9162.15 - 1999

选择规格尺寸 点击↓

M4

M5

M5

M6

M6

M8

M8

同规格,其他部分尺寸不同

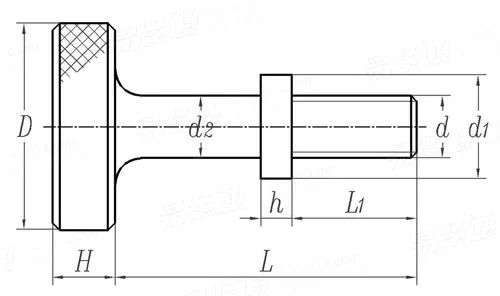

JB /T 9162.15 - 1999 压紧螺钉

尺寸单位: mm
机械行业JB /T9162.15 - 1999 JB9162.15 9162.1 压紧螺钉
JB /T 9162.15 - 1999 压紧螺钉
扫一扫分享
螺纹规格
d
M4 M5 M5 M6 M6 M8 M8
L
L1
D
d1
d2
H
h
21 22 29 22 29 27 37
12 12 16 12 12 16 16
12 16 20 16 20 24 24
6 8 8 10 10 12 12
5 6 6 6 6 10 10
4 6 6 6 6 8 8
2 2.5 2.5 3 3 4 4
注:技术数据仅供参考,请以官方原件为准!
