圆柱头调节支承 JB /T 8026.3 - 1999

选择规格尺寸 点击↓

M5

M6

M8

M10

M12

M16

M20

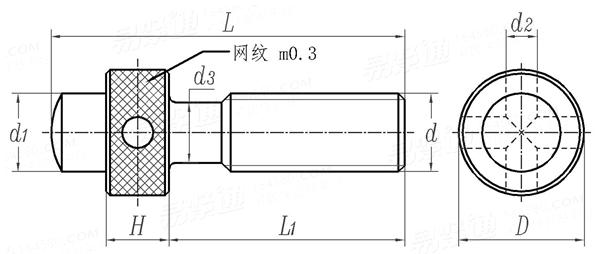

JB /T 8026.3 - 1999 圆柱头调节支承

尺寸单位: mm
机械行业JB /T8026.3 - 1999 JB8026.3 8026.3JB 圆柱头调节支承
JB /T 8026.3 - 1999 圆柱头调节支承
扫一扫分享
公称长度L
螺纹规格
d
M5 M6 M8 M10 M12 M16 M20
D
d1
d2
d3
H
10 12 14 16 18 22 28
5 6 8 10 12 16 20
3 3 3 4 5 6 8
3.7 4.4 6 7.7 9.4 13 16.4
6 6 6 8 10 12 14
L1
- - - - - - -

技术条件和引用标准

材料
热处理
其他
45钢按 GB/T 699 的规定
L ≤ 50mm 全部40~45HRC;L > 50mm 头部40~45HRC
其他技术条件按 JB/T 8044 的规定
注:技术数据仅供参考,请以官方原件为准!
