米制十二键槽凸缘螺栓 ASME B 18.2.7.1M - 2002 (R2009)

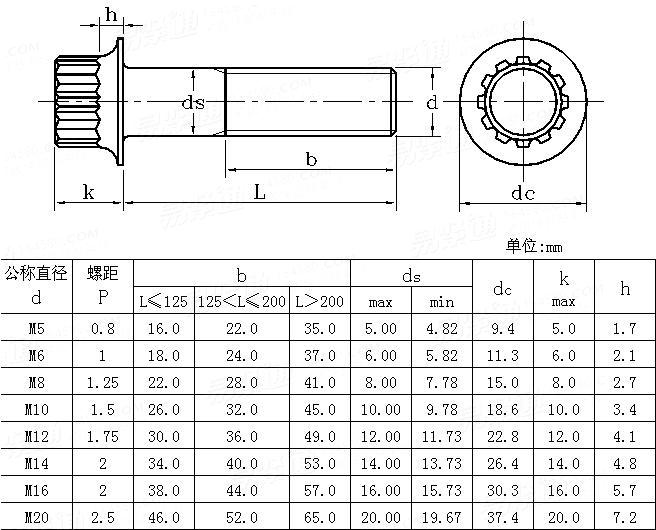

ASME B 18.2.7.1M - 2002 (R2009) 米制十二键槽凸缘螺栓

美标ASME B18.2.7.1M - 2002 (R2009) ASME18. 米制十二键槽凸缘螺栓

米/英制螺纹对照

扫一扫
移动端使用
或分享给好友

替代列表

ASME/ANSI B 18.2.7.1M - 1999 ASME/ANSI B 18.2.7.1M - 2002(R2007) ASME/ANSI B 18.2.7.1M - 2002(R2009)

等效标准

国际 ISO	美标 ASME/ANSI
ISO 9254	ASME/ANSI B 18.2.7.1M 部分近似

以上有部分标准可能为近似等效，如有异议以标准原件为准

引用参考

ASME B 18.6.3 (DATA-G) - 2013

机械螺钉和自攻螺钉的通用要求

注：技术数据仅供参考，请以官方原件为准！
