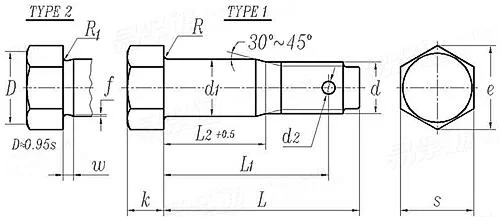

装铰刀孔用A级精度小六角螺栓 GOST 7817 - 1980

选择规格尺寸点击↓

(14)

(18)

(22)

(27)

括号内尺寸为非优选

尺寸单位: mm

俄标GOST 7817 - 1980 GOST7817 7817GOST 装铰刀孔用A级精度小六角螺栓

扫一扫分享

公差公制螺纹极限尺寸米/英制螺纹对照螺纹直径与受力截面积最小破坏扭矩牌号等级毛坯直径

千件重及价格计算千件重 : kg x 元/kg = 元/千件

默认密度 g/cm³

公称长度L 注:选择后获得 相应重量 等

螺纹尺寸
d

(14)

(18)

(22)

(27)

P	螺距	粗牙
		细牙
d₁	公称
	偏差值 h9	最大值
		最小值
	偏差值 k6	最大值
		最小值
k
s
e	最小值
d₂	最小值=公称
	最大值
R	最大值=公称
	最小值
R₁	最大值=公称
	最小值
f	最大值=公称
	最小值
w

1	1.25	1.5	1.75	2	2	2.5	2.5	2.5	3	3	3.5	4	4.5	5
/	1	1.25	1.25	1.5	1.5	1.5	1.5	1.5	2	2	2	3	3	3
7	9	11	13	15	17	19	21	23	25	28	32	38	44	50
7	9	11	13	15	17	19	21	23	25	28	32	38	44	50
6.964	8.964	10.957	12.957	14.957	16.957	18.948	20.948	22.948	24.948	27.948	31.938	37.938	43.938	49.938
7.01	9.01	11.012	13.012	15.012	17.012	19.015	21.015	23.015	25.015	28.015	32.018	38.018	44.018	50.018
7.001	9.001	11.001	13.001	15.001	17.001	19.002	21.002	23.002	25.002	28.002	32.002	38.002	44.002	50.002
4	5.5	7	8	9	10	12	13	14	15	17	19	23	26	30
10	12	14	17	19	22	24	27	30	32	36	41	50	60	70
11	13.2	15.5	18.9	21.2	24.5	26.8	30.1	33.5	35.8	40.3	45.9	56.1	67.4	78.6
1.6	2	2.5	3.2	3.2	4	4	4	5	5	5	6.3	6.3	8	8
1.85	2.25	2.75	3.5	3.5	4.3	4.3	4.3	5.3	5.3	5.3	6.66	6.66	8.36	8.36
0.25	0.4	0.4	0.6	0.6	0.6	0.6	0.8	0.8	0.8	1	1	1	1.2	1.6
0.19	0.34	0.34	0.54	0.54	0.54	0.54	0.74	0.74	0.74	0.94	0.94	0.94	1.14	1.54
0.3	0.5	0.5	1	1	1	1	1	1	1	1	1	1	1	1
0.24	0.44	0.44	0.94	0.94	0.94	0.94	0.94	0.94	0.94	0.94	0.94	0.94	0.94	0.94
0.15	0.15	0.25	0.25	0.25	0.25	0.25	0.25	0.25	0.25	0.25	0.25	0.25	0.25	0.25
0.09	0.09	0.19	0.19	0.19	0.19	0.19	0.19	0.19	0.19	0.19	0.19	0.19	0.19	0.19
1	1.6	2	3	3	3	3	3	3	3	3	3	3	3	3

L₁

L₂ /偏差值+0.5

千件钢制重≈kg

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

紧固件 - 螺栓、螺钉和螺柱 - 公称长度和螺纹长度 (ISO 888:2012, MOD)

GB /T 12603 - 2005

金属热处理工艺分类及代号

GB /T 3 - 1997

普通螺纹收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 一般要求

GB /T 5779.3 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 特殊要求

注：技术数据仅供参考，请以官方原件为准！
