光杆公差带h8短螺纹小六角头螺栓 HB 1- 105 - 2002

选择规格尺寸点击↓

M10

M12 ×1.5

M14 ×1.5

M16 ×1.5

M18 ×1.5

M20 ×1.5

M22 ×1.5

M24 ×1.5

尺寸单位: mm

航空HB 1-105 - 2002 HB105 105HB 光杆公差带h8短螺纹小六角头螺栓

扫一扫分享

单重计算公差公制螺纹极限尺寸米/英制螺纹对照螺纹直径与受力截面积最小破坏扭矩牌号等级毛坯直径

千件重及价格计算千件重 : kg x 元/kg = 元/千件

默认密度 g/cm³

公称长度L 注:选择后获得 相应重量 等

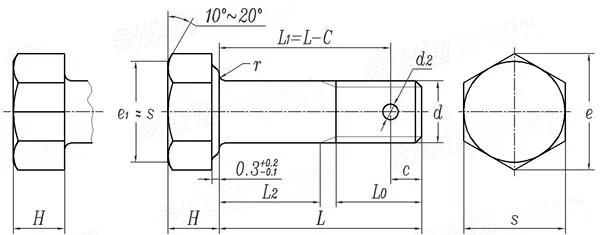

螺纹尺寸
d

M10

M12
×1.5

M14
×1.5

M16
×1.5

M18
×1.5

M20
×1.5

M22
×1.5

M24
×1.5

H	最大值=公称
H	最小值
s	最大值=公称
s	最小值
e	最小值
L₀	参考
r	±0.2
d₂
c	参考

2.5	2.5	3	4	4	4	4	5	5	6	6
2.25	2.25	2.75	3.7	3.7	3.7	3.7	4.7	4.7	5.7	5.7
8	10	12	14	17	19	22	24	27	30	32
7.85	9.85	11.82	13.82	16.82	18.79	21.79	23.79	26.79	29.79	31.75
8.8	11	13.2	15.5	18.8	21.1	24.5	26.8	30.2	33.6	35.8
6.5	7	8.5	10	12	13	15	16	18	20	22
0.5	0.5	0.8	0.8	1	1	1.5	1.5	1.5	2	2
1.6	1.6	2	2.5	2.5	2.5	3.2	3.2	3.2	3.2	3.2
3	3	4	4	4.5	4.5	5	5	5.5	6.5	7

L₂

千件钢制重≈kg

①,标志按 HB 0-3；
一般公差按 HB 5800-1999；
破坏剪力按 HB 1-217；
其余技术要求按 HB 1-218。

技术条件和引用标准

材料
热处理
表面处理

30CrMnSiA	40CrNiMoA	GH2132	1Cr11Ni2W2MoV
σ_b=1080~1280	σ_b=1080~1280	σ_b ≥ 900	σ_b=1080~1280
d₁ ≤ 8 镀锌钝化 d₁＞8 镀镉钝化	镀镉钝化	/	镀铜

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

紧固件 - 螺栓、螺钉和螺柱 - 公称长度和螺纹长度 (ISO 888:2012, MOD)

GB /T 12603 - 2005

金属热处理工艺分类及代号

GB /T 3 - 1997

普通螺纹收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 一般要求

GB /T 5779.3 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 特殊要求
