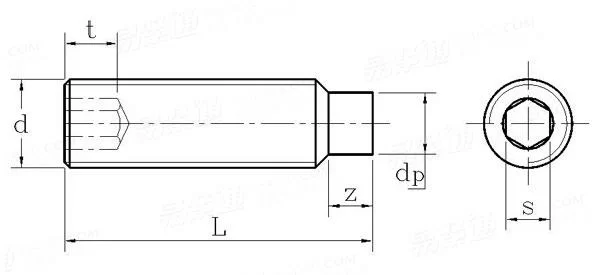

英制螺纹内六角圆柱端紧定螺钉 Table 6B BS 2470 - 1973

选择规格尺寸点击↓

3/16

1/4

5/16

3/8

7/16

1/2

5/8

3/4

7/8

尺寸单位: inch

英标BS 2470 - 1973 BS2470 2470BS 英制螺纹内六角圆柱端紧定螺钉 Table 6B

扫一扫分享

单重计算公差最小破坏扭矩牌号等级

螺纹规格
d

3/16

1/4

5/16

3/8

7/16

1/2

5/8

3/4

7/8

PP	BSW
PP	BSF
s	公称
t	最小值
d_p	最大值
d_p	最小值
z	最大值
z	最小值

24	20	18	16	14	12	11	10	9	8
32	26	22	20	18	16	14	12	11	10
3/32	1/8	5/32	3/16	7/32	1/4	5/16	3/8	1/2	9/16
0.075	0.100	0.125	0.150	0.175	0.200	0.250	0.300	0.400	0.450
0.127	0.156	0.203	0.250	0.297	0.344	0.469	0.562	0.656	0.750
0.120	0.149	0.195	0.241	0.287	0.334	0.456	0.549	0.642	0.734
0.049	0.067	0.082	0.099	0.114	0.130	0.164	0.196	0.227	0.260
0.041	0.059	0.074	0.089	0.104	0.120	0.148	0.180	0.211	0.240

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

紧固件 - 螺栓、螺钉和螺柱 - 公称长度和螺纹长度 (ISO 888:2012, MOD)

GB /T 3 - 1997

普通螺纹收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 一般要求

GB /T 5779.3 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 特殊要求

注：技术数据仅供参考，请以官方原件为准！
