BA螺纹内六角圆柱端紧定螺钉 Table 6C BS 2470 - 1973

选择规格尺寸 点击↓

6#

5#

4#

3#

2#

1#

0#

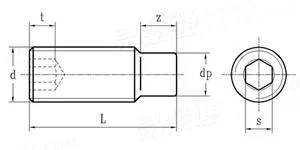

BS  2470 - 1973 BA螺纹内六角圆柱端紧定螺钉  Table 6C

尺寸单位: inch
英标BS 2470 - 1973 BS2470 2470BS BA螺纹内六角圆柱端紧定螺钉  Table 6C
BS  2470 - 1973 BA螺纹内六角圆柱端紧定螺钉  Table 6C
扫一扫分享
螺纹规格
d
6# 5# 4# 3# 2# 1# 0#
s 公称
t 最小值
dp 最大值
最小值
0.050 1/16 1/16 5/64 3/32 3/32 1/8
0.04 0.05 0.05 0.062 0.075 0.075 0.1
0.075 0.083 0.092 0.109 0.127 0.14 0.156
0.07 0.078 0.087 0.103 0.12 0.133 0.149
注:技术数据仅供参考,请以官方原件为准!
