内六角圆柱端紧定螺钉 [Table 14] (ASTM F912 / F880) ASME B 18.3 (T14 HD) - 2012

选择规格尺寸点击↓

10#

1/4

5/16

3/8

7/16

1/2

5/8

3/4

7/8

1-1/8

1-1/4

1-3/8

1-1/2

1-3/4

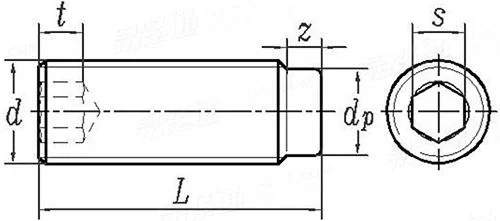

ASME B 18.3 (T14 HD) - 2012 内六角圆柱端紧定螺钉 [Table 14] (ASTM F912 / F880)

尺寸单位: inch

美标ASME B18.3 (T14 HD) - 2012 ASME18.3 18 内六角圆柱端紧定螺钉 [Table 14] (ASTM F912 / F880)

扫一扫分享

单重计算公差美制螺纹极限尺寸米/英制螺纹对照螺纹直径与受力截面积最小破坏扭矩牌号等级

公称直径
d

10#

1/4

5/16

3/8

d	螺纹直径
PP	粗牙/UNC
	细牙/UNF
	超细牙/UNEF
s	公称
t	最小值
d_p	最大值
d_p	最小值
z	最大值
z	最小值

0.0600	0.0730	0.0860	0.0990	0.1120	0.1250	0.1380	0.1640	0.1900	0.2500	0.3125	0.3750
-	64.0	56.0	48.0	40.0	40.0	32.0	32.0	24.0	20.0	18.0	16.0
80.0	72.0	64.0	56.0	48.0	44.0	40.0	36.0	32.0	28.0	24.0	24.0
-	-	-	-	-	-	-	-	-	32.0	32.0	32.0
0.028	0.035	0.035	0.050	0.050	0.062	0.062	0.078	0.094	0.125	0.156	0.188
0.050	0.060	0.060	0.070	0.070	0.080	0.080	0.090	0.100	0.125	0.156	0.188
0.040	0.049	0.057	0.066	0.075	0.083	0.092	0.109	0.127	0.156	0.203	0.250
0.037	0.045	0.053	0.062	0.070	0.078	0.087	0.103	0.120	0.149	0.195	0.241
0.017	0.021	0.024	0.027	0.030	0.033	0.038	0.043	0.049	0.067	0.082	0.099
0.013	0.017	0.020	0.023	0.026	0.027	0.032	0.037	0.041	0.059	0.074	0.089

公称直径
d

7/16

1/2

5/8

3/4

7/8

1-1/8

1-1/4

1-3/8

1-1/2

1-3/4

d	螺纹直径
PP	粗牙/UNC
	细牙/UNF
	超细牙/UNEF
s	公称
t	最小值
d_p	最大值
d_p	最小值
z	最大值
z	最小值

0.4375	0.5000	0.6250	0.7500	0.8750	1.0000	1.1250	1.2500	1.3750	1.5000	1.7500	2.0000
14.0	13.0	11.0	10.0	9.0	8.0	7.0	7.0	6.0	6.0	5.0	4.5
20.0	20.0	18.0	16.0	14.0	12.0	12.0	12.0	12.0	12.0	-	-
28.0	28.0	24.0	20.0	20.0	20.0	18.0	18.0	18.0	18.0	-	-
0.219	0.250	0.312	0.375	0.500	0.562	0.562	0.625	0.625	0.750	1.000	1.000
0.219	0.250	0.312	0.375	0.500	0.562	0.562	0.625	0.625	0.750	1.000	1.000
0.297	0.344	0.469	0.562	0.656	0.750	0.844	0.938	1.031	1.125	1.312	1.500
0.287	0.334	0.456	0.549	0.642	0.734	0.826	0.920	1.011	1.105	1.289	1.474
0.114	0.130	0.164	0.196	0.227	0.260	0.291	0.323	0.354	0.385	0.448	0.510
0.104	0.120	0.148	0.180	0.211	0.240	0.271	0.303	0.334	0.365	0.428	0.490

替代列表

ASME B 18.3 - 2003(R2008) ASME B 18.3 - 2012

工艺相关

ASME B 18.3 (Table 18) - 2012

内六角凹槽对边尺寸偏差 [Table 18]

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

紧固件 - 螺栓、螺钉和螺柱 - 公称长度和螺纹长度 (ISO 888:2012, MOD)

GB /T 3 - 1997

普通螺纹收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 一般要求

GB /T 5779.3 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 特殊要求

注：技术数据仅供参考，请以官方原件为准！
