首页 产品与标准 GB 845 - 1976 十字槽盘头自攻螺钉

十字槽盘头自攻螺钉 GB 845 - 1976

选择规格尺寸 点击↓

2.5

3

4

5

6

括号内尺寸为非优选

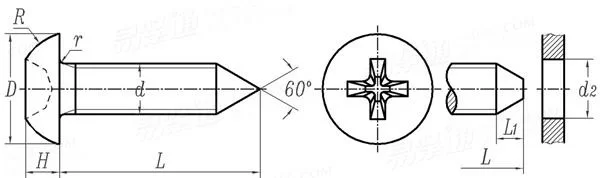

GB 845 - 1976 十字槽盘头自攻螺钉

尺寸单位: mm
国标GB 845 - 1976 GB845 845GB 十字槽盘头自攻螺钉
国标GB 845 - 1976 GB845 845GB 十字槽盘头自攻螺钉
模型下载 替
GB 845 - 1976 十字槽盘头自攻螺钉
扫一扫分享
单重计算 公差
千件重及价格计算 千件重 : kg x 元/kg = 元/千件
默认密度 g/cm3
×

选择材料对应密度(g/cm3)

  • 碳钢 7.85
  • 不锈钢 8.1
  • 不锈钢 7.95
  • 不锈钢 7.7
  • 钛合金 4.5
  • 铝合金 2.8
  • 铜 8.89


在此选择或在计算页输入材料密度 密度表
公称长度L 注:选择后获得 相应重量
公称直径
d
2.5 3 4 5 6
D 最大值
最小值
H 公称
最大值
最小值
r ≤
R ≤
L1
d2 推荐
4.1 5.5 6.50 8.20 10.50
3.8 5.2 6.14 7.84 10.07
1.5 1.8 2.4 3 3.6
1.62 1.92 2.6 3.2 3.8
1.38 1.58 2.2 2.8 3.4
0.2 0.2 0.4 0.4 0.4
1.5 1.8 2.4 3 3.6
1.5 1.8 2.4 3 3.6
2 2.4 3.2 4 4.8
千件钢制重≈kg
- - - - -
替代列表
GB 845 - 1976 GB /T 845 - 1985 GB /T 845 - 2017
等效标准
国标 GB 国际 ISO 德标 DIN 意大利 UNI 法国 NF
GB /T 845
ISO 7049
DIN EN ISO 7049
UNI 6954
NF E 25-658
以上有部分标准可能为近似等效，如有异议以标准原件为准

工艺相关

GB 944.1
螺钉用十字槽
GB /T 922
木螺钉技术条件

技术条件和引用标准

-
十字槽按T2 GB 944-76 规定。
技术条件按 GB 922-76 规定。

引用参考

GB /T 3098.5
紧固件机械性能 - 自攻螺钉
GB /T 1172 - 1999
黑色金属硬度及强度换算值
GB /T 5267.1 - 2002
镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能
GB /T 193 - 2003
普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)
GB /T 5280 - 2002
自攻螺钉用螺纹
