十字槽盘头凸缘（华司）自攻钉 DIN 968 - 2002

选择规格尺寸 点击↓

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

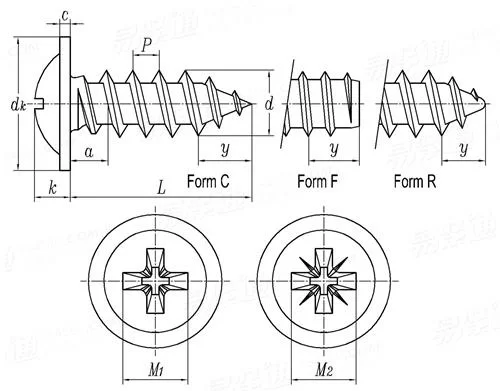

DIN 968 - 2002 十字槽盘头凸缘（华司）自攻钉

尺寸单位: mm
德标DIN 968 - 2002 DIN968 968DIN 十字槽盘头凸缘（华司）自攻钉
德标DIN 968 - 2002 DIN968 968DIN 十字槽盘头凸缘（华司）自攻钉
DIN 968 - 2002 十字槽盘头凸缘（华司）自攻钉
扫一扫分享
公差
千件重及价格计算 千件重 : kg x 元/kg = 元/千件
默认密度 g/cm3
×

选择材料对应密度(g/cm3)

  • 碳钢 7.85
  • 不锈钢 8.1
  • 不锈钢 7.95
  • 不锈钢 7.7
  • 钛合金 4.5
  • 铝合金 2.8
  • 铜 8.89


在此选择或在计算页输入材料密度 密度表
公称长度L 注:选择后获得 相应重量
螺纹规格
d
ST2.9 ST3.5 ST4.2 ST4.8 ST5.5 ST6.3
P 螺距
a 最大值
dk 最大值=公称
最小值
k 最大值=公称
最小值
c 最大值
最小值
槽号
M1 H型 参考值
深度 H型 最小值
深度 最大值
M2 Z型 参考值
深度 Z型 最小值
深度 最大值
y 参考值 C型
F型
R型
1.1 1.3 1.4 1.6 1.8 1.8
1.1 1.3 1.4 1.6 1.8 1.8
7.5 9 10 11.5 13 14.5
6.92 8.42 9.42 10.8 12.3 13.8
2.35 2.6 3.05 3.55 3.8 4.55
2.1 2.35 2.75 3.25 3.5 4.25
0.8 0.9 1.1 1.35 1.6 1.8
0.6 0.7 0.9 1.05 1.2 1.4
1 2 2 2 3 3
3.0 4.2 4.6 5.0 6.5 7.1
1.35 1.4 1.8 2.26 2.49 3
1.8 2.03 2.46 2.87 3.15 3.66
2.9 3.9 4.3 4.7 6.2 6.7
1.58 1.47 1.88 2.28 2.51 3.02
1.83 1.93 2.34 2.74 2.97 3.48
2.6 3.2 3.7 4.3 5 6
2.1 2.5 2.8 3.2 3.6 3.6
- 2.7 3.2 3.6 4.3 5.0
千件钢制重≈kg
- - - - - -
替代列表
DIN 968 - 1994 DIN 968 - 2002 DIN 968 - 2008

技术条件和引用标准

材料
钢 不锈钢
螺纹
机械性能 硬度等级（材料）
标准
公差 产品等级
标准
十字槽
表面处理
验收及包装
DIN EN ISO 1478
St A2-20H，A4-20
DIN EN ISO 2702 DIN EN ISO 3506-4
A
DIN EN ISO 4759-1
DIN EN ISO 4757
不经处理
电镀 DIN EN ISO 4042
非电解锌片涂层 DIN EN ISO 10683		 不经处理
DIN EN ISO 3269

引用参考

GB /T 3098.5 - 2016
紧固件机械性能 - 自攻螺钉
GB /T 1172 - 1999
黑色金属硬度及强度换算值
GB /T 5267.1 - 2002
镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能
GB /T 193 - 2003
普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)
GB /T 5280 - 2002
自攻螺钉用螺纹
注：技术数据仅供参考，请以官方原件为准！
