大六角头螺钉 [Table 7] ASME B 18.2.1 - 2010

选择规格尺寸点击↓

3/8

1/2

5/8

3/4

7/8

1-1/8

1-1/4

1-3/8

1-1/2

1-5/8

1-3/4

1-7/8

2-1/4

2-1/2

2-3/4

3-1/4

3-1/2

3-3/4

4-1/4

4-1/2

4-3/4

5-1/4

5-1/2

5-3/4

尺寸单位: inch

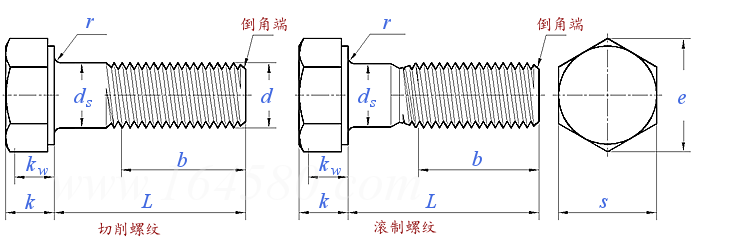

美标ASME B18.2.1 - 2010 ASME18.2.1 18.2.1A 大六角头螺钉 [Table 7]

扫一扫分享

单重计算公差美制螺纹极限尺寸米/英制螺纹对照螺纹直径与受力截面积最小破坏扭矩牌号等级

螺纹规格
d

3/8

1/2

5/8

3/4

7/8

1-1/8

1-1/4

1-3/8

1-1/2

1-5/8

1-3/4

1-7/8

2-1/4

d_s	最大值
d_s	最小值
s	最大值
s	最小值
e	最大值
e	最小值
k	最大值
k	最小值
k_w	最小值
b	L≤6
b	L＞6

0.375	0.5	0.625	0.75	0.875	1	1.125	1.25	1.375	1.5	1.625	1.75	1.875	2	2.25
0.36	0.482	0.605	0.729	0.852	0.976	1.098	1.223	1.345	1.47	1.591	1.716	1.839	1.964	2.214
0.688	0.875	1.062	1.25	1.438	1.625	1.812	2	2.188	2.375	2.562	2.75	2.938	3.125	3.5
0.669	0.85	1.031	1.212	1.394	1.575	1.756	1.938	2.119	2.3	2.481	2.662	2.844	3.025	3.388
0.794	1.01	1.227	1.443	1.66	1.876	2.093	2.309	2.526	2.742	2.959	3.175	3.392	3.608	4.041
0.763	0.969	1.175	1.383	1.589	1.796	2.002	2.209	2.416	2.622	2.829	3.035	3.242	3.449	3.862
0.243	0.323	0.403	0.483	0.563	0.627	0.718	0.813	0.878	0.974	1.038	1.134	1.198	1.263	1.423
0.226	0.302	0.378	0.455	0.531	0.591	0.658	0.749	0.81	0.902	0.962	1.054	1.114	1.175	1.327
0.160	0.215	0.269	0.324	0.378	0.416	0.461	0.530	0.569	0.640	0.694	0.748	0.802	0.825	0.933
1	1.25	1.5	1.75	2	2.25	2.5	2.75	3	3.25	3.5	3.75	4	4.25	-
1.25	1.5	1.75	2	2.25	2.5	2.75	3	3.25	3.5	3.75	4	4.25	4.5	5

螺纹规格
d

2-1/2

2-3/4

3-1/4

3-1/2

3-3/4

4-1/4

4-1/2

4-3/4

5-1/4

5-1/2

5-3/4

d_s	最大值
d_s	最小值
s	最大值
s	最小值
e	最大值
e	最小值
k	最大值
k	最小值
k_w	最小值
b	L≤6
b	L＞6

2.5	2.75	3	3.25	3.5	3.75	4	4.25	4.5	4.75	5	5.25	5.5	5.75	6
2.461	2.711	2.961	3.21	3.461	3.7109	3.9609	4.2228	4.4727	4.7227	4.9726	5.2226	5.4726	5.7225	5.9725
3.875	4.25	4.625	5	5.375	5.75	6.125	6.5	6.875	7.25	7.625	8	8.375	8.75	9.125
3.75	4.112	4.475	4.838	5.2	5.562	5.925	6.288	6.65	7.012	7.375	7.738	8.1	8.462	8.825
4.474	4.907	5.34	5.774	6.207	6.64	7.073	7.506	7.939	8.372	8.805	9.238	9.671	10.104	10.537
4.275	4.688	5.102	5.515	5.928	6.341	6.755	7.168	7.581	7.994	8.408	8.821	9.234	9.647	10.060
1.583	1.744	1.935	2.126	2.256	2.447	2.576	2.768	2.896	3.088	3.217	3.408	3.538	3.729	3.858
1.479	1.632	1.815	1.998	2.12	2.303	2.424	2.608	2.728	2.912	3.033	3.216	3.338	3.521	3.642
1.042	1.151	1.290	1.399	1.484	1.612	1.697	1.826	1.910	2.038	2.123	2.251	2.337	2.465	2.549
-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5.5	6	6.5	7	7.5	8	8.5	9	9.5	10	10.5	11	11.5	12	12.5

替代列表

ANSI/ASME B 18.2.1 - 1996 ASME B 18.2.1 - 2010 ASME B 18.2.1 - 2012

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

紧固件 - 螺栓、螺钉和螺柱 - 公称长度和螺纹长度 (ISO 888:2012, MOD)

GB /T 12603 - 2005

金属热处理工艺分类及代号

GB /T 3 - 1997

普通螺纹收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 一般要求

GB /T 5779.3 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 特殊要求

注：技术数据仅供参考，请以官方原件为准！
