钢轨用8.8级和10.9级高强度绝缘接头螺栓 TB /T 2347 - 1993

选择规格尺寸点击↓

M22

M24

TB /T 2347 - 1993 钢轨用8.8级和10.9级高强度绝缘接头螺栓

尺寸单位: mm

铁道部TB /T2347 - 1993 TB2347 2347TB 钢轨用8.8级和10.9级高强度绝缘接头螺栓

扫一扫分享

公差公制螺纹极限尺寸米/英制螺纹对照螺纹直径与受力截面积最小破坏扭矩牌号等级毛坯直径

螺纹规格
d

M22

M24

性能等级
d_s
d_s1

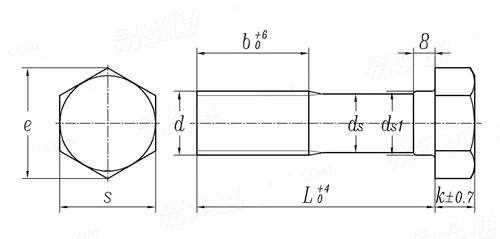

e
s
k
L	最大值
	最小值
b	最大值
	最小值

8.8	10.9
20.376	22.051
22	24
39.55	39.55
36	36
15	15
154/164/174	154/169/174/184
150/160/170	150/165/170/180
66	66
60	60

技术条件和引用标准

推荐材料
螺纹	公差
	标准
机械性能	抗拉强度σb_min
	屈服强度σ0.2_min
	洛氏硬度HRC
	伸长率δ_min
表准质量

10.9S，20MnSi化学成分，GB 1499；
8.8S，Q275，GB 700

GB/T 196、GB/T 197

8.8S：830 MPa
10.9S：1040 MPa

8.8S：660 MPa
10.9S：940 MPa

8.8S：25~35
10.9S：34~41

8.8S：12%
10.9S：9%

① 螺纹表面不允许有裂纹，不允许有妨碍螺纹量规自由旋入的碰伤和毛刺，不允许有影响使用的双牙尖、划痕和丝扣不完整。
② 接头螺栓表面不允许有影响使用的凹痕、毛刺、浮锈圆钝、飞边、烧伤和氧化皮；应按GB 5779.1及GB 5779.2规定执行。
③ 接头螺栓对螺杆轴心线的同轴度公差为φ1.4mm。
④螺栓支承面对螺杆轴心线垂直度公差按GB 3103.1 中的粗制螺栓 C级公差的规定。

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

紧固件 - 螺栓、螺钉和螺柱 - 公称长度和螺纹长度 (ISO 888:2012, MOD)

GB /T 12603 - 2005

金属热处理工艺分类及代号

GB /T 3 - 1997

普通螺纹收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 一般要求

GB /T 5779.3 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 特殊要求

注：技术数据仅供参考，请以官方原件为准！
