米制内六角凹端紧定螺钉 (ASTM F912M / F880M /A1-70) ASME/ANSI B 18.3.6M (CUP) - 1986 (R2002)

选择规格尺寸点击↓

M1.6

M2.5

M10

M12

M16

M20

M24

同规格，其他部分尺寸不同

ASME/ANSI B 18.3.6M (CUP) - 1986 (R2002) 米制内六角凹端紧定螺钉 (ASTM F912M / F880M /A1-70)

尺寸单位: mm

美标ASME/ANSI B18.3.6M (CUP) - 1986 (R2002 米制内六角凹端紧定螺钉 (ASTM F912M / F880M /A1-70)

扫一扫分享

单重计算公差公制螺纹极限尺寸米/英制螺纹对照螺纹直径与受力截面积最小破坏扭矩牌号等级毛坯直径

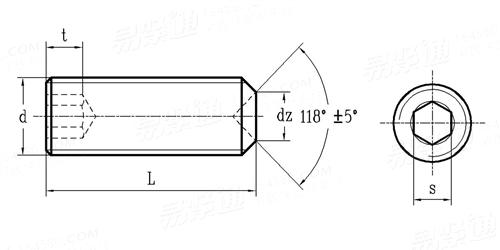

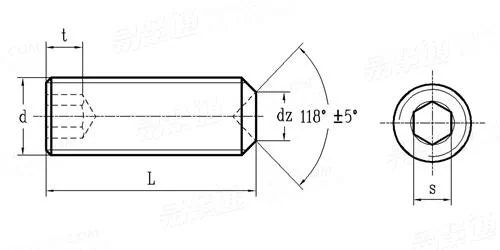

螺纹尺寸
d

M1.6

M2.5

P	螺距
s	公称
L	公称
t	最小值	长螺钉
		短螺钉
d_z	最大值
	最小值

0.35	0.35	0.35	0.35	0.4	0.4	0.4	0.4	0.4	0.45	0.45	0.45	0.45	0.5
0.7	0.7	0.7	0.7	0.9	0.9	0.9	0.9	0.9	1.3	1.3	1.3	1.3	1.5
1.5	2	2.5	3	1.5	2	2.5	3	4	2	2.5	3	4	2
0.6	0.8	1	1.25	0.6	0.8	1	1.2	1.5	0.7	1.1	1.5	1.8	0.6
0.6	0.7	0.7	0.7	0.6	0.7	0.7	0.7	0.7	0.7	1	1	1	0.6
0.8	0.8	0.8	0.8	1	1	1	1	1	1.25	1.25	1.25	1.25	1.5
0.64	0.64	0.64	0.64	0.82	0.82	0.82	0.82	0.82	1.05	1.05	1.05	1.05	1.28

螺纹尺寸
d

P	螺距
s	公称
L	公称
t	最小值	长螺钉
		短螺钉
d_z	最大值
	最小值

0.5	0.5	0.5	0.5	0.7	0.7	0.7	0.7	0.7	0.8	0.8	0.8	0.8	0.8
1.5	1.5	1.5	1.5	2	2	2	2	2	2.5	2.5	2.5	2.5	2.5
2.5	3	4	5	2.5	3	4	5	6	3	4	5	6	8
1.1	1.5	2.1	2.1	1	1.3	1.8	2.3	2.3	1.2	2	2.7	2.7	2.7
1.1	1.2	1.2	1.2	1	1.3	1.8	2	2	1.2	2	2.3	2.3	2.3
1.5	1.5	1.5	1.5	2	2	2	2	2	2.5	2.5	2.5	2.5	2.5
1.28	1.28	1.28	1.28	1.75	1.75	1.75	1.75	1.75	2.22	2.22	2.22	2.22	2.22

螺纹尺寸
d

M10

M12

P	螺距
s	公称
L	公称
t	最小值	长螺钉
		短螺钉
d_z	最大值
	最小值

1	1	1	1	1.25	1.25	1.25	1.25	1.5	1.5	1.5	1.5	1.75	1.75
3	3	3	3	4	4	4	4	5	5	5	5	6	6
4	5	6	8	5	6	8	10	6	8	10	12	8	10
1.8	2.5	3	3	1.8	2.5	4	4	2	3.6	5	5	3	4.5
1.8	2.5	3	3	1.8	2.5	4	4	2	3.6	5	5	3	4.5
3	3	3	3	4	4	4	4	5	5	5	5	6	6
2.69	2.69	2.69	2.69	3.65	3.65	3.65	3.65	4.6	4.6	4.6	4.6	5.57	5.57

螺纹尺寸
d

M12

M16

M20

M24

P	螺距
s	公称
L	公称
t	最小值	长螺钉
		短螺钉
d_z	最大值
	最小值

1.75	1.75	2	2	2	2	2.5	2.5	2.5	3	3	3	3
6	6	8	8	8	8	10	10	10	12	12	12	12
12	16	10	12	16	20	16	20	25	16	20	25	30
6	6	3	4.8	8	8	6	9	10	5	8	12	12
6	6	3	4.8	8	8	6	9	10	5	8	12	12
6	6	8	8	8	8	10	10	10	12	12	12	12
5.57	5.57	7.5	7.5	7.5	7.5	9.44	9.44	9.44	11.39	11.39	11.39	11.39

替代列表

暂无

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

紧固件 - 螺栓、螺钉和螺柱 - 公称长度和螺纹长度 (ISO 888:2012, MOD)

GB /T 3 - 1997

普通螺纹收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 一般要求

GB /T 5779.3 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 特殊要求

注：技术数据仅供参考，请以官方原件为准！
