BS 4174 - 1972 开槽80°沉头清根自攻钉 [Table 10]

尺寸单位: 英寸(inch)
英标BS 4174 - 1972 BS4174 4174BS 开槽80°沉头清根自攻钉 [Table 10]
BS 4174 - 1972 开槽80°沉头清根自攻钉 [Table 10]
扫一扫分享
单重计算 公差
规格
2# 4# 6# 8# 10# 12# 14# 16#
dk （mm） 最大值
最小值
k （mm） 最大值
最小值
n （mm） 最大值
最小值
t （mm） 公称
dk （in.） 最大值
最小值
k （in.） 最大值
最小值
n （in.） 最大值
最小值
t （in.） 公称
4.37 5.71 7.09 8.43 9.78 11.13 12.88 16.13
3.73 4.95 6.2 7.42 8.64 9.88 11.48 14.43
0.91 1.19 1.5 1.78 2.06 2.34 2.72 3.4
0.71 0.96 1.22 1.47 1.73 1.98 2.34 2.95
0.79 0.99 1.22 1.37 1.52 1.7 1.9 2.13
0.58 0.79 0.99 1.14 1.27 1.42 1.63 1.83
0.36 0.46 0.56 0.68 0.79 0.91 1.04 1.32
0.172 0.225 0.279 0.332 0.385 0.438 0.507 0.635
0.147 0.195 0.244 0.292 0.340 0.389 0.452 0.568
0.036 0.047 0.059 0.070 0.081 0.092 0.107 0.134
0.028 0.038 0.048 0.058 0.068 0.078 0.092 0.116
0.031 0.039 0.048 0.054 0.060 0.067 0.075 0.084
0.023 0.031 0.039 0.045 0.050 0.056 0.064 0.072
0.014 0.018 0.022 0.027 0.031 0.036 0.041 0.052

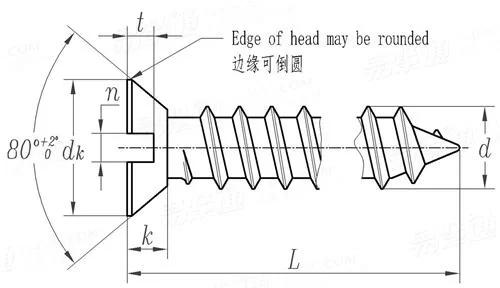

①,头部边缘为倒圆或平的。

采用标准

引用参考

GB /T 3098.5 - 2016
紧固件机械性能 - 自攻螺钉
GB /T 1172 - 1999
黑色金属硬度及强度换算值
GB /T 5267.1 - 2002
镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能
GB /T 193 - 2003
普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)
GB /T 5280 - 2002
自攻螺钉用螺纹
注：技术数据仅供参考，请以官方原件为准！
