带推力点的平头螺钉(球面圆柱端螺钉) DIN 6332 - 2003

选择规格尺寸 点击↓

M6

M8

M10

M12

M16

M20

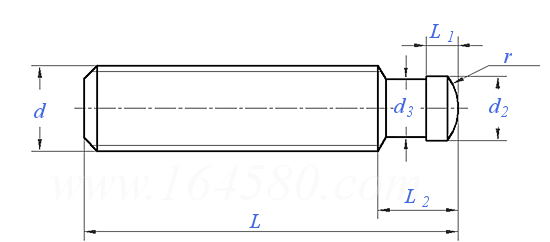

DIN  6332 - 2003 带推力点的平头螺钉(球面圆柱端螺钉)

尺寸单位: mm
德标DIN 6332 - 2003 DIN6332 6332DIN 带推力点的平头螺钉(球面圆柱端螺钉)
DIN  6332 - 2003 带推力点的平头螺钉(球面圆柱端螺钉)
扫一扫分享
千件重及价格计算 千件重 : kg x 元/kg = 元/千件
默认密度 g/cm3
公称长度L 注:选择后获得 相应重量
螺纹规格
d
M6 M8 M10 M12 M16 M20
P 螺距
d2 最大值
最小值
d3 最大值
最小值
r
L2
L1
1 1.25 1.5 1.75 2 2.5
4.5 6 8 8 12 15.5
4.425 5.925 7.91 7.91 11.89 15.39
4 5.4 7.2 7.2 11 14.4
3.9 5.3 7.1 7.1 10.9 14.3
3 5 6 6 9 13
6 7.5 9 10 12 14
2.5 3 4.5 4.5 5 5.5
千件钢制重≈kg
- - - - - -
替代列表
注:技术数据仅供参考,请以官方原件为准!
