顶压支承 JB /T 8026.2 - 1999

选择规格尺寸 点击↓

Tr16

Tr20

Tr24

Tr30

Tr36

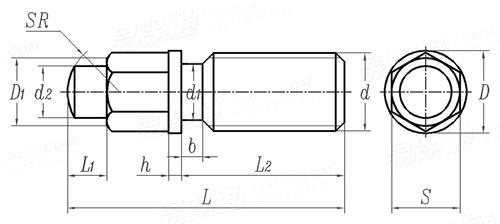

JB /T 8026.2 - 1999 顶压支承

尺寸单位: mm
机械行业JB /T8026.2 - 1999 JB8026.2 8026.2JB 顶压支承
JB /T 8026.2 - 1999 顶压支承
扫一扫分享
公称长度L
螺纹规格
d
Tr16
Tr20
Tr24
Tr30
Tr36
P 螺距
D
S 最小值=公称
最小值
L1
D1
d1
d2
b
h
SR
4 4 5 6 6
16.2 19.6 25.4 31.2 36.9
13 17 21 27 34
12.73 16.73 20.67 26.67 33.38
8 10 12 15 18
13.5 16.5 21 26 31
10.9 14.9 17.4 22.2 28.2
10 12 16 20 24
5 5 6.5 7.5 7.5
3 3 4 5 5
10 12 16 20 24
L2
- - - - -

技术条件和引用标准

材料
热处理
其他
45钢按 GB/T 699 的规定。
40~45HRC
其他技术条件按 JB/T 8044 的规定
注:技术数据仅供参考,请以官方原件为准!
