ASME B 18.6.3 (T7+T40) - 2013 82°开槽半沉头 AB ABR 自攻螺钉 [Table 7]

尺寸单位: inch

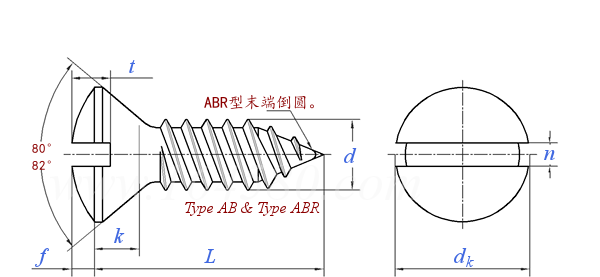

美标ASME B18.6.3 (T7+T40) - 2013 ASME18.6. 82°开槽半沉头 AB ABR 自攻螺钉 [Table 7]
ASME B 18.6.3 (T7+T40) - 2013 82°开槽半沉头 AB ABR 自攻螺钉 [Table 7]
扫一扫分享
单重计算 公差
螺纹尺寸
d
0# 1# 2# 3# 4# 5# 6# 7# 8# 10# 12#
d 公称
类型 ② 符号
L ③ A型&AB型
其他类型
dk 最大值
最小值
k 参考值
f 参考值
n 最大值
最小值
t 最大值
最小值
0.0600 0.0730 0.0860 0.0990 0.1120 0.1250 0.1380 0.1510 0.1640 0.1900 0.2160
●◆▲ ●◆▲ ●◆▲■ ●◆▲■ ●◆▲■ ●◆▲■ ●◆▲■ ●◆▲ ●◆▲■ ●◆▲■ ●◆▲■
3/16 3/16 3/16 7/32 1/4 1/4 5/16 3/8 7/16 1/2 9/16
1/8 5/32 3/16 7/32 1/4 1/4 5/16 3/8 7/16 1/2 9/16
0.112 0.137 0.162 0.187 0.212 0.237 0.262 0.287 0.312 0.362 0.412
0.096 0.120 0.144 0.167 0.191 0.215 0.238 0.262 0.285 0.333 0.380
0.035 0.043 0.051 0.059 0.067 0.075 0.083 0.091 0.100 0.116 0.132
0.021 0.025 0.029 0.033 0.037 0.041 0.045 0.049 0.052 0.060 0.068
0.023 0.026 0.031 0.035 0.039 0.043 0.048 0.048 0.054 0.060 0.067
0.016 0.019 0.023 0.027 0.031 0.035 0.039 0.039 0.045 0.050 0.056
0.030 0.038 0.045 0.052 0.059 0.067 0.074 0.081 0.088 0.103 0.117
0.025 0.031 0.037 0.043 0.049 0.055 0.060 0.066 0.072 0.084 0.096
螺纹尺寸
d
14# 1/4 16# 18# 5/16 20# 24# 3/8 7/16 1/2
d 公称
类型 ② 符号
L ③ A型&AB型
其他类型
dk 最大值
最小值
k 参考值
f 参考值
n 最大值
最小值
t 最大值
最小值
0.2420 0.2500 0.2680 0.2940 0.3125 0.3200 0.3720 0.3750 0.4375 0.5000
◆ ●▲■ ◆ ◆ ●▲■ ◆ ◆ ●▲■ ●▲■ ●▲■
5/8 5/8 3/4 13/16 13/16 13/16 1 / / /
/ 5/8 / / 5/8 / / 5/8 3/4 3/4
0.462 0.477 0.512 0.561 0.597 0.611 0.711 0.717 0.760 0.815
0.427 0.442 0.475 0.522 0.556 0.569 0.664 0.670 0.715 0.765
0.148 0.153 0.164 0.180 0.191 0.196 0.228 0.230 0.223 0.223
0.076 0.079 0.084 0.092 0.099 0.100 0.116 0.117 0.122 0.131
0.075 0.075 0.075 0.084 0.084 0.084 0.094 0.094 0.094 0.106
0.064 0.064 0.064 0.072 0.072 0.072 0.081 0.081 0.081 0.091
0.132 0.136 0.146 0.160 0.171 0.175 0.204 0.206 0.210 0.216
0.108 0.112 0.120 0.132 0.141 0.144 0.168 0.170 0.174 0.176
①,头部边缘为倒圆或平的。
②,适用的螺钉类型标记符号如下所示:
● AB型普通自攻螺钉，见表[Table 40]
◆ A型普通自攻螺钉，见表[Table 42]
▲ B型和BP型普通自攻螺钉见表[Table 41]；BF和BT自切自攻螺钉见表[Table 43]
■ C型普通自攻螺钉见表[Table VI-1]；D，F，G和T型自切自攻螺钉见表[Table 44]
③,小于等于表中长度的螺钉，为清根沉头型。可用长度小于等于表列数值AB型清根头型代替A型清根头型。
⑦,I型，IA型，II型等头部凹槽详细尺寸请点击正文标题下方的“采用标准”
