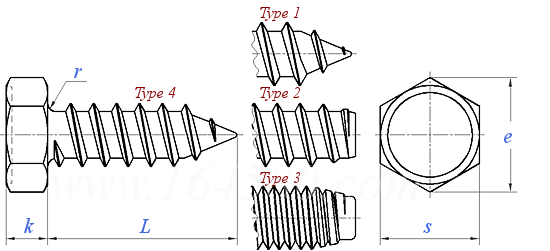

六角头自攻钉【副表1】 JIS B 1123 (AAT1) - 1996

选择规格尺寸点击↓

3.5

4.5

尺寸单位: mm

日标JIS B1123 (AAT1) - 1996 JIS1123 1123JI 六角头自攻钉【副表1】

扫一扫分享

单重计算公差

螺纹规格
d

3.5

4.5

s	最大值
s	最小值
e	最小值
k	公称
	最大值
	最小值
r	最大值

5	5.5	7	7	8	10	12
4.8	5.3	6.8	6.8	7.8	9.8	11.75
5.5	6.05	7.7	7.7	8.7	10.9	13.1
1.6	2.3	2.5	2.7	3	3.5	5
1.7	2.4	2.6	2.8	3.1	3.65	5.15
1.5	2.2	2.4	2.6	2.9	3.35	4.85
0.4	0.4	0.5	0.5	0.6	0.7	0.9
