梅花槽混凝土自攻型锚栓(盘头/沉头/六角法兰头) YJT 1020 (FBS)

选择规格尺寸点击↓

5×60/5

6×40/5

6×60/5

6×80/25

6×40/5

6×60/5

6×80/25

6×100/45

6×40/5

6×60/5

6×80/25

尺寸单位: mm

企标YJT 1020 (FBS) YJT1020 1020YJT 梅花槽混凝土自攻型锚栓(盘头/沉头/六角法兰头)

扫一扫分享

公差

规格

5×60/5

6×40/5

6×60/5

6×80/25

6×40/5

6×60/5

6×80/25

6×100/45

6×40/5

6×60/5

6×80/25

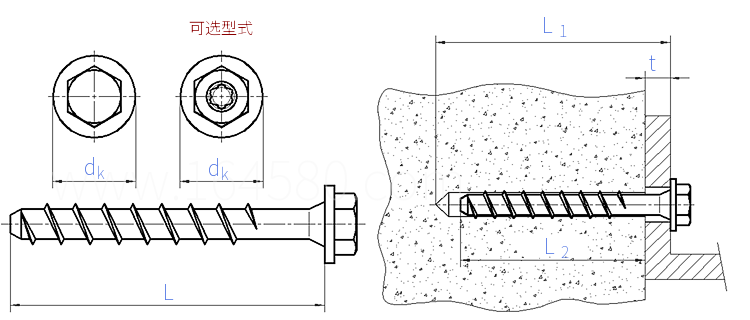

类型
d₀	钻孔直径
L₁	穿透式安装时最小钻孔深度
L	螺钉长度
d_k
L₂	标准款/短款
t	标准款/短款
批头

P	P	LP	P	P	SK	SK	SK	SK	US	US	US
5	6	6	6	6	6	6	6	6	6	6	6
65	50	50	70	90	50	70	90	110	50	70	90
60	40	40	60	80	40	60	80	100	40	60	80
15	15	18	15	15	13	13	13	13	17	17	17
55 / -	- / 35	- / 35	55/35	55/35	- / 35	55/35	55/35	55/35	- / 35	55/35	55/35
5 / -	- / 5	- / 5	5/25	25/45	- / 5	5/25	25/45	45/65	- / 5	5/25	25/45
T30	T30	T30	T30	T30	T30	T30	T30	T30	T30/SW13	T30/SW13	T30/SW13

引用参考

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 5280 - 2002

自攻螺钉用螺纹

注：技术数据仅供参考，请以官方原件为准！
