开槽盘头自攻螺钉和弹垫组合SEMS [Table 3] ASME B 18.13 - 2017

选择规格尺寸点击↓

10#

12#

1/4

5/16

3/8

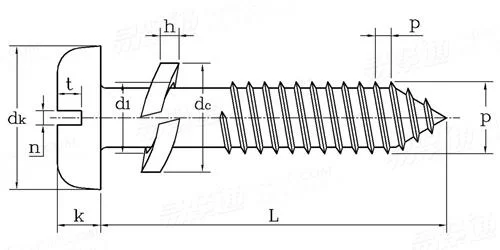

ASME B 18.13 - 2017 开槽盘头自攻螺钉和弹垫组合SEMS [Table 3]

尺寸单位: inch

美标ASME B18.13 - 2017 ASME18.13 18.13ASME 开槽盘头自攻螺钉和弹垫组合SEMS [Table 3]

扫一扫分享

公差

螺纹尺寸
d

10#

12#

1/4

5/16

3/8

d
d₁	最大值
	最小值
h	最小值
d_c	最大值
	最小值
d_k	最大值
	最小值
k	最大值
	最小值
n	最大值
	最小值
t	最小值

0.1120	0.1250	0.1380	0.1510	0.1640	0.1900	0.2160	0.2500	0.3125	0.3750
0.101	0.112	0.121	0.135	0.144	0.162	0.188	0.217	0.278	0.338
0.096	0.107	0.116	0.130	0.138	0.156	0.181	0.209	0.270	0.330
0.055	0.055	0.062	0.062	0.078	0.093	0.109	0.120	0.156	0.171
0.217	0.228	0.253	0.267	0.308	0.356	0.414	0.465	0.598	0.688
0.206	0.217	0.240	0.254	0.294	0.342	0.399	0.449	0.582	0.672
0.219	0.245	0.270	0.296	0.322	0.372	0.425	0.492	0.615	0.740
0.205	0.231	0.256	0.281	0.306	0.357	0.407	0.473	0.594	0.716
0.068	0.075	0.082	0.089	0.096	0.110	0.125	0.144	0.178	0.212
0.058	0.065	0.072	0.079	0.085	0.099	0.112	0.130	0.162	0.195
0.039	0.043	0.048	0.048	0.054	0.060	0.067	0.075	0.084	0.094
0.031	0.035	0.039	0.039	0.045	0.050	0.056	0.064	0.072	0.081
0.030	0.034	0.037	0.041	0.045	0.053	0.061	0.070	0.085	0.100

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

注：技术数据仅供参考，请以官方原件为准！
