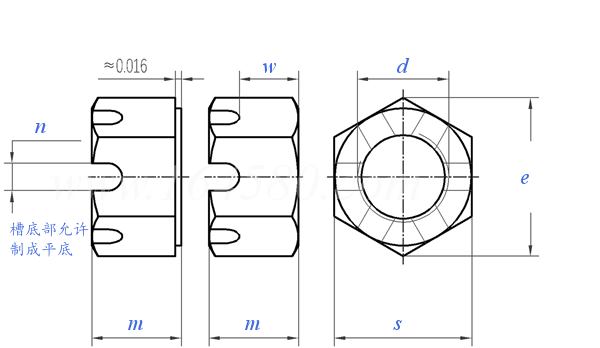

六角开槽螺母 [Table 5] (ASTM A563 / F594 / F467) ASME B 18.2.2 - 2015

选择规格尺寸点击↓

1/4

5/16

3/8

7/16

1/2

9/16

5/8

3/4

7/8

1-1/8

1-1/4

1-3/8

1-1/2

ASME B 18.2.2 - 2015 六角开槽螺母 [Table 5] (ASTM A563 / F594 / F467)

尺寸单位: inch

美标ASME B18.2.2 - 2015 ASME18.2.2 18.2.2A 六角开槽螺母 [Table 5] (ASTM A563 / F594 / F467)

扫一扫分享

公差美制螺纹极限尺寸米/英制螺纹对照

螺纹规格
d

1/4

5/16

3/8

7/16

1/2

9/16

5/8

3/4

7/8

1-1/8

1-1/4

1-3/8

1-1/2

d
PP	UNC
	UNF
	8-UN
s	最小值
	最大值
e	最小值
	最大值
m	最小值
	最大值
w	最小值
	最大值
n	最小值
	最大值

0.25	0.3125	0.375	0.4375	0.5	0.5625	0.625	0.75	0.875	1	1.125	1.25	1.375	1.5
20	18	16	14	13	12	11	10	9	8	7	7	6	6
28	24	24	20	20	18	18	16	14	12	12	12	12	12
-	-	-	-	-	-	-	-	-	-	8	8	8	8
0.428	0.489	0.551	0.675	0.736	0.861	0.922	1.088	1.269	1.450	1.631	1.812	1.994	2.175
0.438	0.500	0.562	0.688	0.750	0.875	0.938	1.125	1.312	1.500	1.688	1.875	2.062	2.250
0.488	0.557	0.628	0.768	0.840	0.982	1.051	1.240	1.447	1.653	1.859	2.066	2.273	2.480
0.505	0.577	0.650	0.794	0.866	1.010	1.083	1.299	1.516	1.732	1.949	2.165	2.382	2.598
0.212	0.258	0.320	0.365	0.427	0.473	0.535	0.617	0.724	0.831	0.939	1.030	1.138	1.245
0.226	0.273	0.337	0.385	0.448	0.496	0.559	0.665	0.776	0.887	0.999	1.094	1.206	1.317
0.12	0.16	0.19	0.21	0.27	0.29	0.32	0.38	0.49	0.56	0.61	0.67	0.78	0.82
0.14	0.18	0.21	0.23	0.29	0.31	0.34	0.40	0.52	0.59	0.64	0.70	0.82	0.86
0.07	0.09	0.12	0.12	0.15	0.15	0.18	0.18	0.18	0.24	0.24	0.31	0.31	0.37
0.10	0.12	0.15	0.15	0.18	0.18	0.24	0.24	0.24	0.30	0.33	0.40	0.40	0.46

①,螺纹应符合ASME B1.1的要求
②,表面电镀参考标准ASTM F1941。其他表面处理可在适用的机械和性能标准中指定。

替代列表

ANSI/ASME B 18.2.2 - 2010 ASME B 18.2.2 - 2015 ASME B 18.2.2 - 2022

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 3 - 1997

普通螺纹收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 3103.1 - 2002

紧固件公差（螺栓、螺柱、螺钉和螺母）

GB 3103.2 - 1982

紧固件公差 - 用于精密机械的螺栓、螺钉和螺母

注：技术数据仅供参考，请以官方原件为准！
