1型非金属嵌件六角锁紧螺母-细牙 NF E 25-421 - 1997 (R2002)

选择规格尺寸点击↓

M10

M12

M14

M16

M20

M24

M30

M36

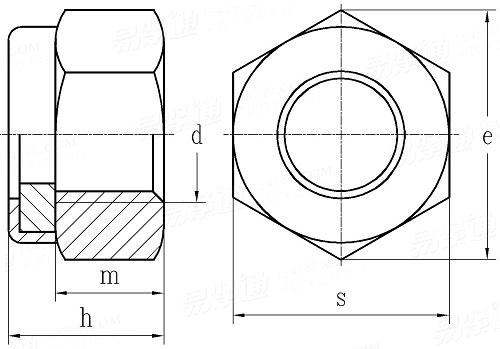

NF E 25-421 - 1997 (R2002) 1型非金属嵌件六角锁紧螺母-细牙

尺寸单位: mm

法国NF E25-421 - 1997 (R2002) NF25-421 25- 1型非金属嵌件六角锁紧螺母-细牙

扫一扫分享

单重计算公差

螺纹规格
d

M10

M12

M14

M16

M20

M24

M30

M36

P	螺距	细牙
		极细牙
m	最小值
h	最大值
	最小值
s	最大值
	最小值

1	1.25	1.5	1.5	1.5	1.5	2	2	3
/	1	1.25	/	/	/	/	/	/
6.44	8.04	10.37	12.1	14.1	16.9	20.2	24.3	29.4
9.5	11.9	14.9	17	19.1	22.8	27.1	32.6	38.9
8.92	11.2	14.2	15.9	17.8	20.7	25	30.1	36.4
13	16	18	21	24	30	36	46	55
12.73	15.73	17.73	20.67	23.67	29.16	35	45	53.8

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 3 - 1997

普通螺纹收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 3103.1 - 2002

紧固件公差（螺栓、螺柱、螺钉和螺母）

GB 3103.2 - 1982

紧固件公差 - 用于精密机械的螺栓、螺钉和螺母

注：技术数据仅供参考，请以官方原件为准！
