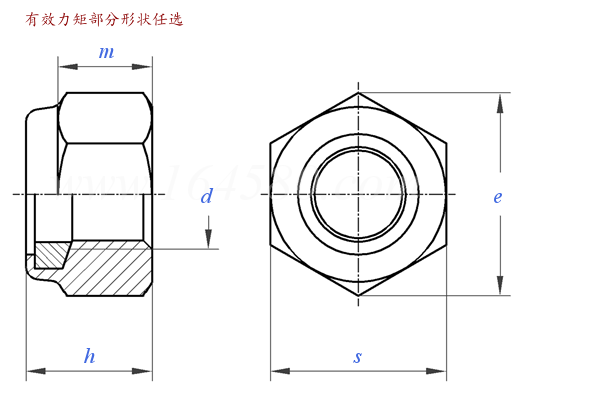

米制，非金属嵌件，六角锁紧螺母 [Table 1] (F563M, F836M, F467M) ASME B 18.16M (hex/non-metal) - 2004 (R2016)

选择规格尺寸点击↓

M3.5

M10

(M10)

M12

M14

M16

M20

M24

M30

M36

同规格，其他部分尺寸不同

括号内尺寸为非优选

ASME B 18.16M (hex/non-metal) - 2004 (R2016) 米制，非金属嵌件，六角锁紧螺母 [Table 1] (F563M, F836M, F467M)

尺寸单位: mm

美标ASME B18.16M (hex/non-metal) - 2004 (R 米制，非金属嵌件，六角锁紧螺母 [Table 1] (F563M, F836M, F467M)

扫一扫分享

单重计算公差公制螺纹极限尺寸米/英制螺纹对照

螺纹尺寸
d

M3.5

M10

(M10)

M12

M14

M16

M20

M24

M30

M36

P	螺距
s	最大值
	最小值
e	最大值
	最小值
h	5级、10级	最大值
		最小值
	9级	最大值
		最小值
m	5级、10级	最小值
	9级	最小值

0.5	0.6	0.7	0.8	1	1.25	1.5	1.5	1.75	2	2	2.5	3	3.5	4
5.5	6	7	8	10	13	16	15	18	21	24	30	36	46	55
5.32	5.82	6.78	7.78	9.78	12.73	15.73	14.73	17.73	20.67	23.67	29.16	35	45	53.8
6.35	6.93	8.08	9.24	11.55	15.01	18.48	17.32	20.78	24.25	27.71	34.64	41.57	53.12	63.51
6.01	6.58	7.66	8.79	11.05	14.38	17.77	16.64	20.03	23.35	26.75	32.95	39.55	50.85	60.79
4.5	5	6	6.8	8	9.5	11.9	12.5	14.9	17	19.1	22.8	27.1	32.6	38.9
3.9	4.3	5.3	6	7.2	8.5	10.9	11.5	13.9	15.8	17.9	21.5	25.6	30.6	36.9
4.5	5	6	7.2	8.5	10.2	12.8	13.5	16.1	18.3	20.7	25.1	29.5	35.6	42.6
3.9	4.3	5.3	6.4	7.7	9.2	11.8	12.5	15.1	17.1	19.5	23.8	28	33.6	40.6
1.4	1.7	1.9	2.7	3	3.7	4.8	5.6	6.7	7.8	9.1	10.9	13	15.7	19
1.4	1.7	1.9	2.7	3	4.3	5.6	6.2	7.7	8.9	10.5	12.7	15.1	18.2	22.1

替代列表

ANSI/ASME B 18.16.3Mhex/non-metal - 1998 ASME B 18.16Mhex/non-metal - 2004 ASME B 18.16M - 2004(R2016)

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 3 - 1997

普通螺纹收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 3103.1 - 2002

紧固件公差（螺栓、螺柱、螺钉和螺母）

GB 3103.2 - 1982

紧固件公差 - 用于精密机械的螺栓、螺钉和螺母
