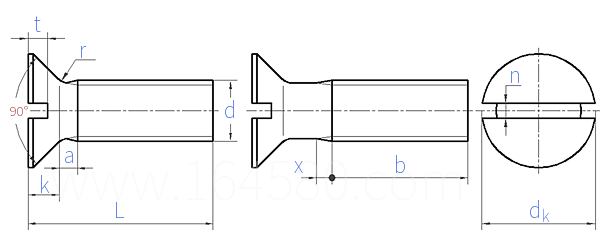

开槽沉头螺钉 CNS 4411 - 1981

选择规格尺寸 点击↓

M1

M1.2

M1.4

M1.6

(M1.8)

M2

M2.5

M3

(M3.5)

M4

M5

M6

M8

M10

M12

(M14)

M16

(M18)

M20

括号内尺寸为非优选
CNS 4411 - 1981 开槽沉头螺钉

尺寸单位: mm
台湾CNS 4411 - 1981 CNS4411 4411CNS 开槽沉头螺钉
台湾CNS 4411 - 1981 CNS4411 4411CNS 开槽沉头螺钉
CNS 4411 - 1981 开槽沉头螺钉
扫一扫分享
单重计算 公差 公制螺纹极限尺寸 米/英制螺纹对照 螺纹直径与受力截面积 最小破坏扭矩 牌号等级 毛坯直径
千件重及价格计算 千件重 : kg x 元/kg = 元/千件
默认密度 g/cm3
×

选择材料对应密度(g/cm3)

  • 碳钢 7.85
  • 不锈钢 8.1
  • 不锈钢 7.95
  • 不锈钢 7.7
  • 钛合金 4.5
  • 铝合金 2.8
  • 铜 8.89


在此选择或在计算页输入材料密度 密度表
公称长度L 注:选择后获得 相应重量
螺纹规格
d
M1 M1.2 M1.4 M1.6 (M1.8) M2 M2.5 M3 (M3.5) M4
b
dk 最大值
最小值
k 最大值
n
r 最大值
t 最大值
最小值
/ / / 15 15 16 18 19 20 22
1.9 2.3 2.6 3 3.4 3.8 4.7 5.6 6.5 7.5
1.76 2.16 2.46 2.86 3.22 3.5 4.4 5.3 6.14 7.14
0.6 0.72 0.84 0.96 1.08 1.2 1.5 1.65 1.93 2.2
0.25 0.3 0.3 0.4 0.4 0.5 0.6 0.8 0.8 1
0.1 0.12 0.14 0.16 0.18 0.2 0.25 0.3 0.35 0.4
0.3 0.35 0.4 0.45 0.5 0.6 0.7 0.85 1 1.1
0.2 0.25 0.28 0.32 0.35 0.4 0.5 0.6 0.7 0.8
千件钢制重≈kg
- - - - - - - - - -
螺纹规格
d
M5 M6 M8 M10 M12 (M14) M16 (M18) M20
b
dk 最大值
最小值
k 最大值
n
r 最大值
t 最大值
最小值
25 28 34 40 46 52 58 64 70
9.2 11 14.5 18 22 25 29 33 36
8.84 10.57 14.07 17.57 21.48 24.48 28.48 32.38 35.38
2.5 3 4 5 6 7 8 9 10
1.2 1.6 2 2.5 3 3 4 4 5
0.5 0.6 0.8 1 1.2 1.4 1.6 1.8 2
1.3 1.6 2.1 2.6 3 3.5 4 4.5 5
1 1.2 1.6 2 2.4 2.8 3.2 3.6 4
千件钢制重≈kg
- - - - - - - - -
