开槽沉头螺栓 CNS 4420 - 1981

选择规格尺寸 点击↓

M10

M12

M16

M20

M22

M24

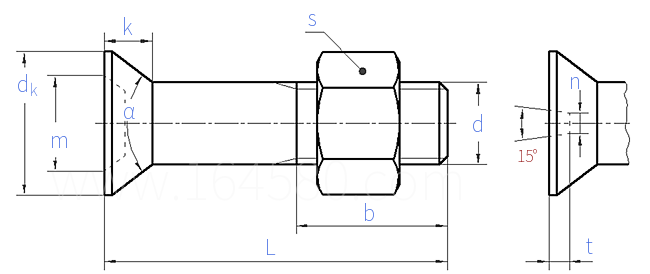

CNS  4420 - 1981 开槽沉头螺栓

尺寸单位: mm
台湾CNS 4420 - 1981 CNS4420 4420CNS 开槽沉头螺栓
CNS  4420 - 1981 开槽沉头螺栓
扫一扫分享
千件重及价格计算 千件重 : kg x 元/kg = 元/千件
默认密度 g/cm3
公称长度L 注:选择后获得 相应重量
螺纹规格
d
M10 M12 M16 M20 M22 M24
P 螺距
dk
k
n
t
α
1.5 1.75 2 2.5 2.5 3
17 21 28 32 35 38
5.5 7 9 11.5 12 13
2.5 3 4 5 5 5
3 4 4 4 5 6
75° 75° 75° 60° 60° 60°
千件钢制重≈kg
- - - - - -
注:技术数据仅供参考,请以官方原件为准!
