AS /NZS 1427 - 1996 米制开槽大扁头螺钉 [Table 5]

尺寸单位: mm
澳标AS /NZS1427 - 1996 AS1427 1427AS 米制开槽大扁头螺钉 [Table 5]

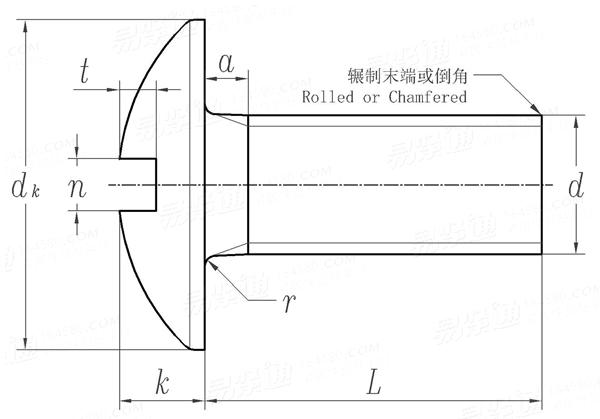

AS /NZS 1427 - 1996 米制开槽大扁头螺钉 [Table 5]
扫一扫分享
螺纹规格
d
M3 M4 M5 M6 M8
P 螺距
dk 最大值
最小值
k 最大值
最小值
a 最大值
n 最大值
最小值
t 最小值
0.5 0.7 0.8 1 1.25
6.9 9.4 11.8 13.9 17.9
6.5 8.9 11.2 13.2 17
1.9 2.5 3.1 3.6 4.7
1.7 2.3 2.9 3.4 4.1
1 1.4 1.6 2 2.5
1 1.51 1.51 1.91 2.31
0.86 1.26 1.26 1.66 2.06
0.8 1.1 1.4 1.68 2.17
注:技术数据仅供参考,请以官方原件为准!
