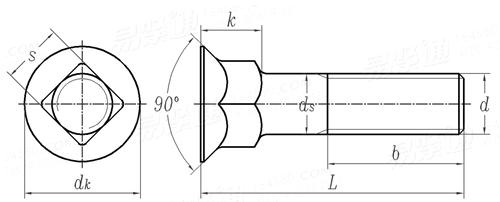

米制90°沉头方颈螺栓 BS 4933 - 1973

选择规格尺寸点击↓

M10

M12

M16

M20

M24

尺寸单位: 毫米(mm)

英标BS 4933 - 1973 BS4933 4933BS 米制90°沉头方颈螺栓

扫一扫分享

单重计算公差公制螺纹极限尺寸米/英制螺纹对照螺纹直径与受力截面积最小破坏扭矩牌号等级毛坯直径

螺纹规格
d

M10

M12

M16

M20

M24

P	螺距
d_s	最大值
d_s	最小值
d_k	最大值
d_k	最小值
k	最大值
k	最小值
s	最大值
s	最小值

0.8	1	1.25	1.5	1.75	2	2.5	3
5.48	6.48	8.58	10.58	12.7	16.7	20.84	24.84
4.52	5.52	7.42	9.42	11.3	15.3	19.16	23.16
10	12	16	20	24	32	40	48
8.5	10.2	13.6	17	20.4	27.2	34	40.8
4.75	5.75	7.9	9.4	10.9	14.1	18.1	21.3
4	5	7	8.5	10	13	17	20
5.48	6.48	8.58	10.58	12.7	16.7	20.84	24.84
4.52	5.52	7.42	9.42	11.3	15.3	19.16	23.16

①,L≤125mm时，b=2d+6；
125＜L≤200mm时，b=2d+12；
L＞200mm时，b=2d+25；
②,本标准中并未规定公称长度L，但可能在新版本中有所包含。
