无头销轴 A型 DIN EN 22340 (A) - 1992

选择规格尺寸点击↓

100

尺寸单位: mm

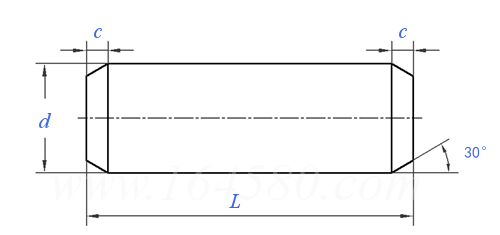

德标DIN EN 22340 (A) - 1992 DIN EN22340 22 无头销轴 A型

扫一扫分享

单重计算公差

公称直径
d

d	最小值
d	最大值
c	最大值

2.94	3.925	4.925	5.925	7.91	9.91	11.89	13.89	15.89	17.89	19.87	21.87	23.87
3	4	5	6	8	10	12	14	16	18	20	22	24
1	1	2	2	2	2	3	3	3	3	4	4	4

公称直径
d

100

d	最小值
d	最大值
c	最大值

26.87	29.87	32.84	35.84	39.84	44.84	49.84	54.81	59.81	69.81	79.81	89.78	99.78
27	30	33	36	40	45	50	55	60	70	80	90	100
4	4	4	4	4	4	4	6	6	6	6	6	6

替代列表

DIN EN 22340A - 1992

等效标准

国标 GB	国际 ISO	德标 DIN	欧标 EN	法国 NF
GB /T 880	ISO 2340	DIN EN 22340	EN 22340	NF E 25-753

以上有部分标准可能为近似等效，如有异议以标准原件为准

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

注：技术数据仅供参考，请以官方原件为准！
