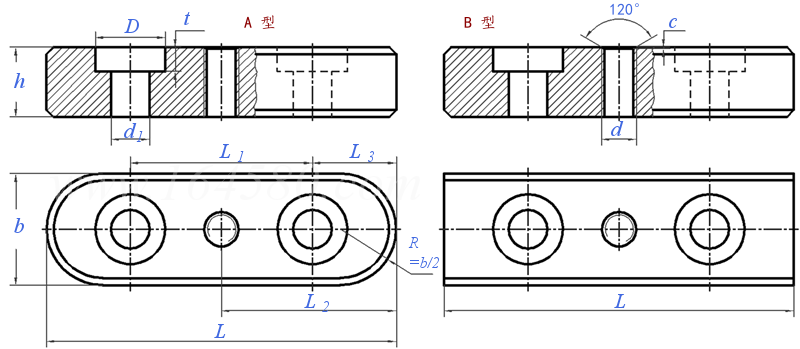

导向型平键 GB /T 1097 - 2003

选择规格尺寸点击↓

尺寸单位: mm

模型下载

扫一扫分享

公差

基本尺寸
b

b	最大值=公称 (h8)
	最小值
h	最大值=公称 (h11)
	最小值
t
d
d₁
D
c

8	10	12	14	16	18	20	22	25	28	32	36	40	45
7.978	9.978	11.973	13.973	15.973	17.973	19.967	21.967	24.967	27.967	31.961	35.961	39.961	44.961
7	8	8	9	10	11	12	14	14	16	18	20	22	25
6.91	7.91	7.91	8.91	9.91	10.89	11.89	13.89	13.89	15.89	17.89	19.87	21.87	24.87
2.4	2.4	3	3.5	3.5	4.5	4.5	4.5	6	6	7	8	8	8
M3	M3	M4	M5	M5	M6	M6	M6	M8	M8	M10	M12	M12	M12
3.4	3.4	4.5	5.5	5.5	6.6	6.6	6.6	9	9	11	14	14	14
6	6	8.5	10	10	12	12	12	15	15	18	22	22	22
0.3	0.3	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	1	1	1

L₁

L₂

L₃

替代列表

GB 1097 - 1979 GB /T 1097 - 2003

工艺相关

技术条件和引用标准

技术条件

①导向型平键应符合 GB/T 1568的规定。
②键槽的尺寸应符合GB/T 1095的规定。
③当键长大于400mm时，其长度应按GB/T 321的R20系列选取，为减小由于直线度而引起的问题，键长应小于10倍的键宽。
④固定用螺钉应符合GB/T 822 或 GB/T 65的规定

引用参考

GB /T 1172

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

注：技术数据仅供参考，请以官方原件为准！
