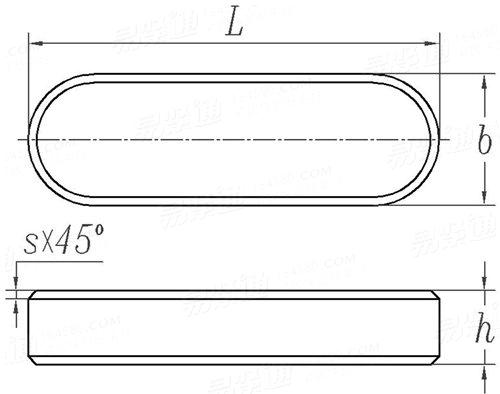

A型圆头平键 IS 2048 (A) - 1983

选择规格尺寸点击↓

100

尺寸单位: mm

印标IS 2048 (A) - 1983 IS2048 2048IS A型圆头平键

扫一扫分享

单重计算公差

千件重及价格计算千件重 : kg x 元/kg = 元/千件

默认密度 g/cm³

基本尺寸
b

b	最大值=公称
	最小值
h	最大值=公称
	最小值
s	最小值
	最大值
L	最小值
	最大值

2	3	4	5	6	8	10	12	14	16	18	20	22
1.975	2.975	3.97	4.97	5.97	7.964	9.964	11.957	13.957	15.957	17.957	19.948	21.948
2	3	4	5	6	7	8	8	9	10	11	12	14
1.975	2.975	3.97	4.97	5.97	6.91	7.91	7.91	8.91	9.91	10.89	11.89	13.89
0.16	0.16	0.16	0.25	0.25	0.25	0.4	0.4	0.4	0.4	0.4	0.6	0.6
0.25	0.25	0.25	0.4	0.4	0.4	0.6	0.6	0.6	0.6	0.6	0.8	0.8
6	6	8	10	14	18	22	28	36	45	50	56	63
20	36	45	56	70	90	110	140	160	180	200	220	250

千件钢制重≈kg

基本尺寸
b

100

b	最大值=公称
	最小值
h	最大值=公称
	最小值
s	最小值
	最大值
L	最小值
	最大值

25	28	32	36	40	45	50	56	63	70	80	90	100
24.948	27.948	31.938	35.938	39.938	44.938	49.938	55.926	62.926	69.926	79.926	89.913	99.913
14	16	18	20	22	25	28	32	32	36	40	45	50
13.89	15.89	17.89	19.87	21.87	24.87	27.87	31.84	31.84	35.84	39.84	44.84	49.84
0.6	0.6	0.6	1	1	1	1	1.6	1.6	1.6	2.5	2.5	2.5
0.8	0.8	0.8	1.2	1.2	1.2	1.2	2	2	2	3	3	3
70	80	90	100	110	125	140	160	180	200	220	250	280
280	320	360	400	400	400	400	400	400	400	400	400	400

千件钢制重≈kg

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

注：技术数据仅供参考，请以官方原件为准！
