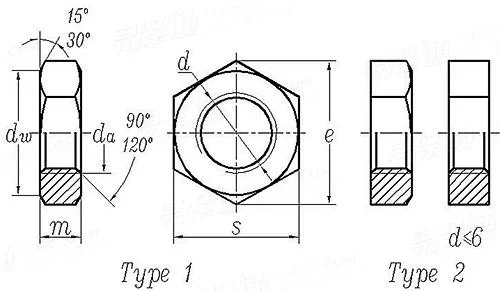

六角锁紧螺母产品等级B GOST 5916 - 1970

选择规格尺寸点击↓

(1)

(1.4)

1.6

2.5

(3.5)

(14)

(18)

(22)

(27)

括号内尺寸为非优选

尺寸单位: mm

俄标GOST 5916 - 1970 GOST5916 5916GOST 六角锁紧螺母产品等级B

扫一扫分享

公差公制螺纹极限尺寸米/英制螺纹对照

千件重及价格计算千件重 : kg x 元/kg = 元/千件

默认密度 g/cm³

螺纹尺寸
d

(1)

(1.4)

1.6

2.5

(3.5)

P	螺距	粗牙
		细牙
s
e	最小值
d_a	最大值
	最小值
d_w	最小值
m	最大值=公称
	最小值
千件重kg

0.25	0.3	0.35	0.4	0.45	0.5	0.6	0.7	0.8	1	1.25	1.5
/	/	/	/	/	/	/	/	/	/	1	1.25
3.2	3.2	3.2	4	5	5.5	6	7	8	10	13	16
3.3	3.3	3.3	4.2	5.3	5.9	6.4	7.5	8.6	10.9	14.2	17.6
1.15	1.61	1.84	2.3	2.9	3.45	4	4.6	5.75	6.75	8.75	10.8
1	1.4	1.6	2	2.5	3	3.5	4	5	6	8	10
2.9	2.9	2.9	3.6	4.5	5	5.4	6.3	7.2	9	11.7	14.5
0.8	1	1	1.2	1.6	1.8	2	2.2	2.7	3.2	4	5
0.7	0.9	0.9	1.1	1.5	1.7	1.9	2.1	2.6	3.08	3.88	4.88
0.037	0.038	0.057	0.074	0.163	0.218	0.276	0.431	0.656	1.254	2.667	5.02

螺纹尺寸
d

(14)

(18)

(22)

(27)

P	螺距	粗牙
		细牙
s
e	最小值
d_a	最大值
	最小值
d_w	最小值
m	最大值=公称
	最小值
千件重kg

1.75	2	2	2.5	2.5	2.5	3	3	3.5	4	4.5	5
1.25	1.5	1.5	1.5	1.5	1.5	2	2	2	3	3	3
18	21	24	27	30	34	36	41	46	55	65	75
19.9	22.8	26.2	29.6	33	37.3	39.6	45.2	50.9	60.8	71.3	82.6
13	15.1	17.3	19.4	21.6	23.8	25.9	29.2	32.4	38.9	45.4	51.8
12	14	16	18	20	22	24	27	30	36	42	48
16.5	19.2	22	24.8	27.7	31.4	33.2	38	42.7	51.1	59.9	69.4
6	7	8	9	10	11	12	13.5	15	18	21	24
5.88	6.85	7.85	8.85	9.85	10.82	11.82	13.32	14.82	17.82	20.79	23.79
6.84	11.67	17.68	25.98	35.53	50.01	59.79	88.06	127.15	216.99	360.63	558.12

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 3 - 1997

普通螺纹收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 3103.1 - 2002

紧固件公差（螺栓、螺柱、螺钉和螺母）

GB 3103.2 - 1982

紧固件公差 - 用于精密机械的螺栓、螺钉和螺母

注：技术数据仅供参考，请以官方原件为准！
