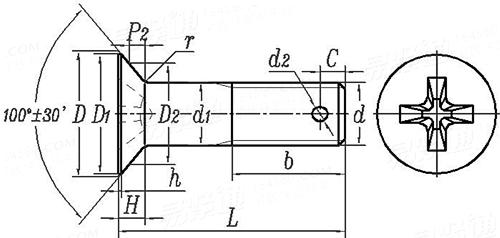

十字槽100°沉头螺钉（带孔或不带孔） HB 7196~7199 (7196/7197/7198/7199) - 1995

选择规格尺寸 点击↓

M4

M5

M6

M8

M10

HB 7196~7199 (7196/7197/7198/7199) - 1995 十字槽100°沉头螺钉（带孔或不带孔）

尺寸单位: mm
航空HB 7196~7199 (7196/7197/7198/7199) - 1 十字槽100°沉头螺钉（带孔或不带孔）
HB 7196~7199 (7196/7197/7198/7199) - 1995 十字槽100°沉头螺钉（带孔或不带孔）
扫一扫分享
公差 公制螺纹极限尺寸 米/英制螺纹对照 螺纹直径与受力截面积 最小破坏扭矩 牌号等级 毛坯直径
螺纹尺寸
d
M4 M5 M6 M8 M10
d1 ① 最大值=公称
最小值
H 参考
D 参考
D1 最小值
D2 供测量用
b 参考
P2 最大值
最小值
r 最大值
最小值
d2
C 参考
4 5 6 8 10
3.88 4.88 5.88 7.85 9.85
1.68 2.11 2.53 3.38 4.23
8 10 12 16 20
7.2 9 10.8 14.8 18.8
5.78 7.71 9 12.21 15.46
7.5 8.5 10 11.5 15
0.93 0.96 1.26 1.6 1.93
0.85 0.88 1.18 1.52 1.85
0.4 0.5 0.7 0.7 0.8
0.2 0.3 0.5 0.5 0.6
1 1.6 1.6 2 2.5
2.5 3 3 4 4
①,ML25和铝合金制螺栓，光杆直径d1允许等于滚制或切制螺纹前的毛坯尺寸。
②,标志按 HB 0-3-83；十字槽按 HT2GB944-76 (d1=5mm时，T2=1.8mm，3号槽)；重量按 HB 1-143-95；接力试验载荷按 HB 1-217-95；技术条件按 HB 1-218-95。
③,HB 7196：材料 ML25，镀锌钝化。标记示例 d1=6/L=36/C=3 (无销孔 HB 7196-6×36，有销孔 HB 7196-6×36×3) 。
④,HB 7197：材料 ML30CrMnSiA；热处理 σb=1175±100 MPa；d1≤8 镀锌钝化，d1=10 镀镉钝化。标记示例 d1=6/L=36/C=3 (无销孔 HB 7197-6×36，有销孔 HB 7197-6×36×3) 。
⑤,HB 7198：材料 1Cr17Ni2；热处理 σb=1175±100 MPa；钝化。标记示例 d1=6/L=36/C=3 (无销孔 HB 7198-6×36，有销孔 HB 7198-6×36×3) 。
⑥,HB 7199：材料 LY8；热处理 σb≥375 MPa；阳极化。标记示例 d1=6/L=36/C=3 (无销孔 HB 7199-6×36，有销孔 HB 7199-6×36×3) 。
