十字槽沉头螺钉 GB 819 - 1976

选择规格尺寸 点击↓

M2

M2.5

M3

M4

M5

M6

M8

M10

M12

括号内尺寸为非优选

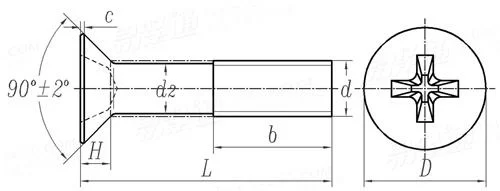

GB  819 - 1976 十字槽沉头螺钉

尺寸单位: mm
国标GB 819 - 1976 GB819 819GB 十字槽沉头螺钉
国标GB 819 - 1976 GB819 819GB 十字槽沉头螺钉
GB  819 - 1976 十字槽沉头螺钉
扫一扫分享
千件重及价格计算 千件重 : kg x 元/kg = 元/千件
默认密度 g/cm3
公称长度L 注:选择后获得 相应重量 螺纹长度
螺纹规格
d
M2 M2.5 M3 M4 M5 M6 M8 M10 M12
P 螺距
D 最大值
最小值
c
H
0.4 0.45 0.5 0.7 0.8 1 1.25 1.5 1.75
4 5 6 7.5 9 11 15 18 22
3.7 4.7 5.7 7.14 8.64 10.57 14.57 17.57 21.48
0.2 0.2 0.2 0.25 0.5 0.5 0.5 0.8 0.8
1.2 1.4 1.7 2 2.5 3 4 4.8 5.8
千件钢制重≈kg
- - - - - - - - -
螺纹长度b
- - - - - - - - -
替代列表
等效标准
国标 GB 国际 ISO 德标 DIN 意大利 UNI 法国 NF
GB /T 819.1
ISO 7046-1
DIN EN ISO 7046-1
UNI 7688
NF E 25-119-1
以上有部分标准可能为近似等效,如有异议以标准原件为准

技术条件和引用标准

-
十字槽按T2 GB 944-76 规定。
技术条件按 GB 89-76 规定。
注:技术数据仅供参考,请以官方原件为准!
