十字槽埋头弹簧螺钉 Self-Clinching PFC2P

选择规格尺寸 点击↓

4#

4#

6#

6#

6#

8#

8#

8#

10#

10#

10#

1/4

1/4

1/4

M3

M3

M4

M4

M4

M5

M5

M5

M6

M6

M6

同规格,其他部分尺寸不同

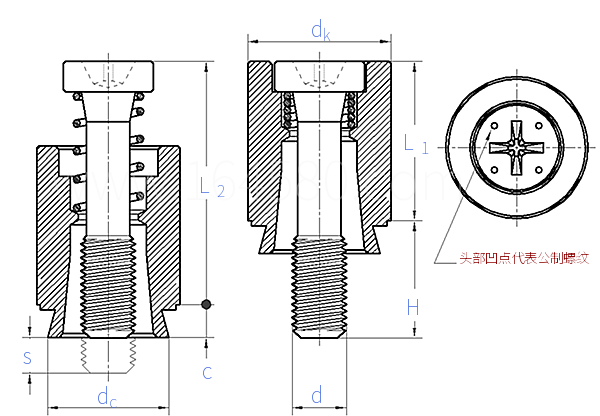

Self-Clinching  PFC2P 十字槽埋头弹簧螺钉

尺寸单位: mm/inch
压铆件Self-Clinching PFC2P Self-ClinchingPF 十字槽埋头弹簧螺钉
Self-Clinching  PFC2P 十字槽埋头弹簧螺钉
扫一扫分享
适用螺纹
4# 4# 6# 6# 6# 8# 8# 8# 10# 10# 10# 1/4 1/4
P
PP
c 最大值
dc 最大值
dk 公称
最大值
最小值
H 公称
最大值
最小值
s 公称
最大值
最小值
L1 公称
L2 公称
板厚 最小值
安装孔尺寸 最小值=公称
最大值
代号
/ / / / / / / / / / / / /
40 40 32 32 32 32 32 32 32 32 32 20 20
0.060 0.060 0.060 0.060 0.060 0.060 0.060 0.060 0.060 0.060 0.060 0.060 0.060
0.264 0.264 0.280 0.280 0.280 0.311 0.311 0.311 0.343 0.343 0.343 0.412 0.412
0.312 0.312 0.344 0.344 0.344 0.375 0.375 0.375 0.406 0.406 0.406 0.468 0.468
0.322 0.322 0.354 0.354 0.354 0.385 0.385 0.385 0.416 0.416 0.416 0.478 0.478
0.302 0.302 0.334 0.334 0.334 0.365 0.365 0.365 0.396 0.396 0.396 0.458 0.458
0.250 0.375 0.250 0.375 0.500 0.312 0.437 0.562 0.312 0.437 0.562 0.375 0.500
0.266 0.391 0.266 0.391 0.516 0.328 0.453 0.578 0.328 0.453 0.578 0.391 0.516
0.234 0.359 0.234 0.359 0.484 0.296 0.421 0.546 0.296 0.421 0.546 0.359 0.484
0.000 0.125 0.000 0.125 0.250 0.000 0.125 0.250 0.000 0.125 0.250 0.000 0.125
0.025 0.150 0.025 0.150 0.275 0.025 0.150 0.275 0.025 0.150 0.275 0.025 0.150
-0.025 0.100 -0.025 0.100 0.225 -0.025 0.100 0.225 -0.025 0.100 0.225 -0.025 0.100
0.370 0.370 0.380 0.380 0.380 0.480 0.480 0.480 0.490 0.490 0.490 0.620 0.620
0.540 0.540 0.540 0.540 0.540 0.705 0.705 0.705 0.705 0.705 0.705 0.905 0.905
0.060 0.060 0.060 0.060 0.060 0.060 0.060 0.060 0.060 0.060 0.060 0.060 0.060
0.265 0.265 0.281 0.281 0.281 0.312 0.312 0.312 0.344 0.344 0.344 0.413 0.413
0.268 0.268 0.284 0.284 0.284 0.315 0.315 0.315 0.347 0.347 0.347 0.416 0.416
PFC2P PFC2P PFC2P PFC2P PFC2P PFC2P PFC2P PFC2P PFC2P PFC2P PFC2P PFC2P PFC2P
适用螺纹
1/4 M3 M3 M4 M4 M4 M5 M5 M5 M6 M6 M6
P
PP
c 最大值
dc 最大值
dk 公称
最大值
最小值
H 公称
最大值
最小值
s 公称
最大值
最小值
L1 公称
L2 公称
板厚 最小值
安装孔尺寸 最小值=公称
最大值
代号
/ 0.5 0.5 0.7 0.7 0.7 0.8 0.8 0.8 1 1 1
20 / / / / / / / / / / /
0.060 1.53 1.53 1.53 1.53 1.53 1.53 1.53 1.53 1.53 1.53 1.53
0.412 6.71 6.71 7.9 7.9 7.9 8.72 8.72 8.72 10.47 10.47 10.47
0.468 7.92 7.92 9.53 9.53 9.53 10.31 10.31 10.31 11.89 11.89 11.89
0.478 8.17 8.17 9.78 9.78 9.78 10.56 10.56 10.56 12.14 12.14 12.14
0.458 7.67 7.67 9.28 9.28 9.28 10.06 10.06 10.06 11.64 11.64 11.64
0.625 6.4 9.5 7.9 11.1 14.3 7.9 11.1 14.3 9.5 12.7 15.9
0.641 6.8 9.9 8.3 11.5 14.7 8.3 11.5 14.7 9.9 13.1 16.3
0.609 6 9.1 7.5 10.7 13.9 7.5 10.7 13.9 9.1 12.3 15.5
0.250 0 3.2 0 3.2 6.4 0 3.2 6.4 0 3.2 6.4
0.275 0.64 3.84 0.64 3.84 7.04 0.64 3.84 7.04 0.64 3.84 7.04
0.225 -0.64 2.56 -0.64 2.56 5.76 -0.64 2.56 5.76 -0.64 2.56 5.76
0.620 9.4 9.4 12.19 12.19 12.19 12.45 12.45 12.45 15.75 15.75 15.75
0.905 13.72 13.72 17.91 17.91 17.91 17.91 17.91 17.91 22.99 22.99 22.99
0.060 1.53 1.53 1.53 1.53 1.53 1.53 1.53 1.53 1.53 1.53 1.53
0.413 6.73 6.73 7.92 7.92 7.92 8.74 8.74 8.74 10.49 10.49 10.49
0.416 6.81 6.81 8 8 8 8.82 8.82 8.82 10.57 10.57 10.57
PFC2P PFC2P PFC2P PFC2P PFC2P PFC2P PFC2P PFC2P PFC2P PFC2P PFC2P PFC2P
注:技术数据仅供参考,请以官方原件为准!
