82°小半沉头十字槽螺钉 [Table 15] (ASTM F837 / F468) ASME B 18.6.3 (T15) - 2013

选择规格尺寸 点击↓

4# (3)

5# (4)

6# (4)

6# (5)

8# (5)

8# (6)

10# (8)

12# (8)

12# (10)

1/4 (10)

1/4 (12)

5/16 (12)

5/16 (5/16)

3/8 (3/8)

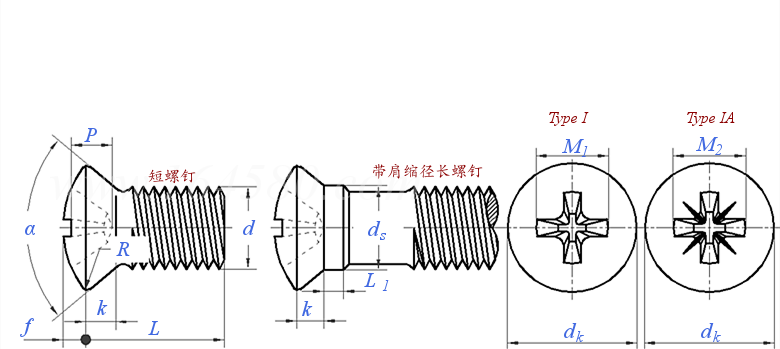

ASME B 18.6.3 (T15) - 2013 82°小半沉头十字槽螺钉 [Table 15] (ASTM F837 / F468)

尺寸单位: inch
美标ASME B18.6.3 (T15) - 2013 ASME18.6.3 1 82°小半沉头十字槽螺钉 [Table 15] (ASTM F837 / F468)
ASME B 18.6.3 (T15) - 2013 82°小半沉头十字槽螺钉 [Table 15] (ASTM F837 / F468)
扫一扫分享
螺纹尺寸
d
4#
(3)
5#
(4)
6#
(4)
6#
(5)
8#
(5)
8#
(6)
10#
(8)
12#
(8)
12#
(10)
1/4
(10)
1/4
(12)
5/16
(12)
5/16
(5/16)
3/8
(3/8)
d 公称
PP
代号 头部尺寸
ds 最大值
最小值
dk 最大值
最小值
k 参考值
f 参考值
R 参考值
L1 最小值
α 最大值
最小值
槽号
M1 短螺钉 参考值
长螺钉 参考值
M2 短螺钉 参考值
长螺钉 参考值
P 短螺钉, I型 最大值
最小值
长螺钉, I型 最大值
最小值
短螺钉, IA型 最大值
最小值
长螺钉, IA型 最大值
最小值
0.1120 0.1250 0.1380 0.1380 0.1640 0.1640 0.1900 0.2160 0.2160 0.2500 0.2500 0.3125 0.3125 0.3750
40 40 32 32 32 32 24 24 24 20 20 18 18 16
3 4 4 5 5 6 8 8 10 10 12 12 5/16 3/8
0.112 0.125 0.138 0.138 0.164 0.164 0.190 0.216 0.216 0.250 0.250 0.312 0.312 0.375
0.106 0.119 0.131 0.131 0.157 0.157 0.181 0.207 0.207 0.240 0.240 0.302 0.302 0.364
0.187 0.212 0.212 0.237 0.237 0.262 0.312 0.312 0.362 0.362 0.412 0.412 0.477 0.597
0.167 0.191 0.191 0.215 0.215 0.238 0.285 0.285 0.333 0.333 0.380 0.380 0.442 0.556
0.057 0.066 0.058 0.075 0.060 0.076 0.094 0.078 0.111 0.091 0.124 0.087 0.130 0.173
0.033 0.037 0.037 0.041 0.041 0.045 0.076 0.076 0.060 0.060 0.068 0.068 0.079 0.099
0.014 0.017 0.017 0.019 0.019 0.021 0.025 0.025 0.029 0.029 0.033 0.033 0.038 0.048
0.062 0.062 0.062 0.062 0.062 0.062 0.062 0.062 0.062 0.062 0.062 0.062 0.062 0.062
82° 82° 82° 82° 82° 82° 82° 82° 82° 82° 82° 82° 82° 82°
80° 80° 80° 80° 80° 80° 80° 80° 80° 80° 80° 80° 80° 80°
1 1 1 2 2 2 2 2 2 2 3 3 3 4
0.118 0.130 0.130 0.152 0.152 0.172 0.186 0.186 0.202 0.202 0.264 0.264 0.284 0.384
0.118 0.130 0.130 0.162 0.162 0.188 0.200 0.200 0.214 0.214 0.264 0.264 0.264 0.384
0.118 0.130 0.130 0.152 0.152 0.172 0.186 0.186 0.202 0.202 0.264 0.264 0.284 0.384
0.118 0.130 0.130 0.162 0.162 0.188 0.200 0.200 0.214 0.214 0.264 0.264 0.284 0.384
0.074 0.087 0.087 0.074 0.074 0.094 0.108 0.108 0.126 0.126 0.135 0.135 0.156 0.218
0.057 0.070 0.070 0.050 0.050 0.069 0.084 0.084 0.102 0.102 0.111 0.111 0.131 0.194
0.074 0.087 0.087 0.085 0.085 0.110 0.124 0.124 0.137 0.137 0.135 0.135 0.156 0.218
0.057 0.070 0.070 0.061 0.061 0.085 0.099 0.099 0.112 0.112 0.111 0.111 0.131 0.194
0.074 0.086 0.086 0.074 0.074 0.093 0.108 0.108 0.125 0.125 0.135 0.135 0.155 0.215
0.058 0.070 0.070 0.056 0.056 0.075 0.090 0.090 0.107 0.107 0.117 0.117 0.137 0.197
0.074 0.086 0.086 0.084 0.084 0.109 0.122 0.122 0.136 0.136 0.135 0.135 0.155 0.215
0.058 0.070 0.070 0.066 0.066 0.091 0.104 0.104 0.118 0.118 0.117 0.117 0.137 0.197
①,头部边缘为倒圆或平的。
②,短机械螺钉(Short machine screws)指公称长度小于等于1 1/8英寸(5号及以下尺寸),或2英寸(6号及以上尺寸)的螺钉。
③,机械螺钉的螺纹长度:

1)螺纹规格≤5#:

公称长度≤3倍公称直径的应为满扣产品,头下螺纹肩距≤1倍螺距。

公称长度>3倍公称直径到 1-1/8 in 的,允许头下肩距最大不超过2倍螺距。

若无其他规定,长螺钉的最小螺纹长度为1 in 。

2)螺纹规格≥6#:

公称长度≤3倍公称直径的应为满扣产品,头下螺纹肩距≤1倍螺距。

公称长度>3倍公称直径到 2 in 的,允许头下螺纹肩距最大不超过2倍螺距。

若无其他规定,长螺钉的最小螺纹长度为 1.5 in 。
⑥,其他凹槽型式请点击正文标题下方的“采用标准”
⑦,机械螺钉的螺纹长度:

1)螺纹规格≤5#:

公称长度≤3倍公称直径的应为满扣产品,头下螺纹肩距≤1倍螺距。

公称长度>3倍公称直径到 1-1/8 in 的,允许头下肩距最大不超过2倍螺距。

若无其他规定,长螺钉的最小螺纹长度为1 in 。

2)螺纹规格≥6#:

公称长度≤3倍公称直径的应为满扣产品,头下螺纹肩距≤1倍螺距。

公称长度>3倍公称直径到 2 in 的,允许头下螺纹肩距最大不超过2倍螺距。

若无其他规定,长螺钉的最小螺纹长度为 1.5 in 。
替代列表

自攻螺纹:

1 AB型和ABR型自攻螺纹和末端 [Table 40] [美标]
ASME/ANSI B 18.6.3 (T40) - 2013
AB型和ABR型自攻螺纹和末端 [Table 40]
Dimensions of Threads and Points for Type AB and Type ABR Thread-forming Screws
AB, ABR型

自攻螺纹:

2 B型 BP型自攻螺钉螺纹和末端 [Table 41] [美标]
ASME/ANSI B 18.6.3 (T41) - 2013
B型 BP型自攻螺钉螺纹和末端 [Table 41]
Dimensions of Threads and Points for Type B and BP Thread-Forming Tapping Screws
B, BP型

自攻螺纹:

3 A型自攻螺钉螺纹和末端 [Table 42] [美标]
ASME/ANSI B 18.6.3 (T42) - 2013
A型自攻螺钉螺纹和末端 [Table 42]
Dimensions of Threads and Points for Type A Thread-Forming Tapping Screws
A型

自攻螺纹:

4 BF型 BT型 自切自攻螺钉螺纹和末端 [Table 43] [美标]
ASME/ANSI B 18.6.3 (T43) - 2013
BF型 BT型 自切自攻螺钉螺纹和末端 [Table 43]
Dimensions of Threads and Points for Types BF and BT Thread-Cutting Tapping Screws
BF, BT型

自攻螺纹:

5 D, F, G, T 型自攻螺钉 螺纹和末端 [Table 44] [美标]
ASME/ANSI B 18.6.3 (T44) - 2013
D, F, G, T 型自攻螺钉 螺纹和末端 [Table 44]
Dimensions of Threads and Points for Type D, F, G, and T Thread-Cutting Tapping Screws
D, F, G, T型

自攻螺纹:

6 自挤自攻【TRS型】螺纹和末端 [Table 45] [美标]
ASME/ANSI B 18.6.3 (T45) - 2013
自挤自攻【TRS型】螺纹和末端 [Table 45]
Dimensions of Type TRS Tapping Screws
TRS型
注:技术数据仅供参考,请以官方原件为准!
