十字槽沉头木螺钉 Q 296

选择规格尺寸 点击↓

3

4

5

6

8

括号内尺寸为非优选

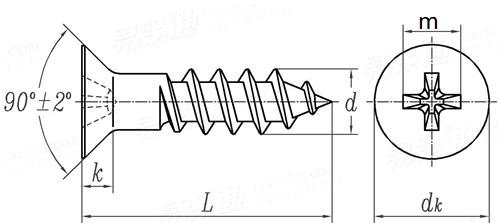

Q  296 十字槽沉头木螺钉

尺寸单位: mm
汽标代号Q 296 Q296 296Q 十字槽沉头木螺钉
Q  296 十字槽沉头木螺钉
扫一扫分享
螺纹规格
d
3 4 5 6 8
d 最大值
最小值
dk 最大值
最小值
k 最大值
槽号
m 参考
深度 最大值
最小值
3 4 5 6 8
2.75 3.7 4.7 5.7 7.64
6 8 10 12 16
5.7 7.64 9.64 11.57 15.57
1.7 2.2 3 3.5 4.5
2 2 2 3 4
3.8 4.8 5.4 7.3 9.3
1.73 2.73 3.33 3.96 4.95
1.2 2.19 2.77 3.39 4.41

技术条件和引用标准

材料 牌号
标准
表面处理 种类
标准
十字槽 型式
标准
其他技术条件
10、15 Q235
GB/T 699 GB/T 700
镀锌钝化 Fe/Zn8
QC/T 625
H
GB/T 944.1
GB/T 922
注:技术数据仅供参考,请以官方原件为准!
