滚花通孔中间带槽台阶镶入螺母带密封垫 H型 DIN 16903 (H) - 1974

选择规格尺寸点击↓

M2.5

(M3.5)

括号内尺寸为非优选

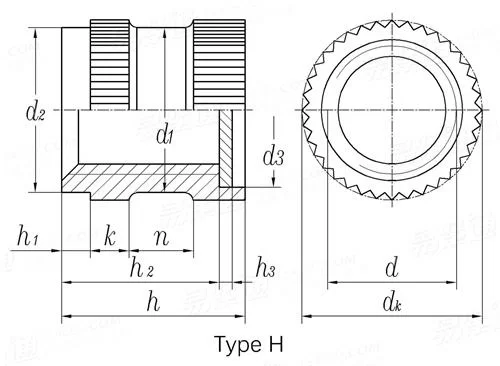

DIN 16903 (H) - 1974 滚花通孔中间带槽台阶镶入螺母带密封垫 H型

尺寸单位: mm

德标DIN 16903 (H) - 1974 DIN16903 16903DIN 滚花通孔中间带槽台阶镶入螺母带密封垫 H型

扫一扫分享

公差公制螺纹极限尺寸米/英制螺纹对照

螺纹规格
d

M2.5

(M3.5)

k
h₁
n
h₃
d₁	(h12)
d_k	（滚花前）
d₂	(h11)
d₃	(D11)
h₂	(h14)
h	(h12)

1	1.2	1.2	1.5	1.5	2	2.5
0.8	0.8	1	1	1	1	1
1.5	1.6	1.8	2.2	2.5	3	3.5
0.32	0.32	0.32	0.5	0.5	0.5	0.5
3.2	3.4	3.8	4.5	5	6.4	7.4
3.5	3.8	4.2	5	5.5	7	8
3.5	3.8	4.2	5	5.5	7	8
2.6	2.8	3.2	3.8	4.5	6	7
3.5	4	4.5	5.5	6	7.5	9
4.3	4.8	5.3	6.5	7	8.5	10

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 3 - 1997

普通螺纹收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 3103.1 - 2002

紧固件公差（螺栓、螺柱、螺钉和螺母）

GB 3103.2 - 1982

紧固件公差 - 用于精密机械的螺栓、螺钉和螺母

注：技术数据仅供参考，请以官方原件为准！
