首页 产品与标准 CNS 8779 - 1982 内螺纹圆柱销

内螺纹圆柱销 CNS 8779 - 1982

选择规格尺寸 点击↓

6

8

10

12

14

16

20

25

30

40

50

60

70

80

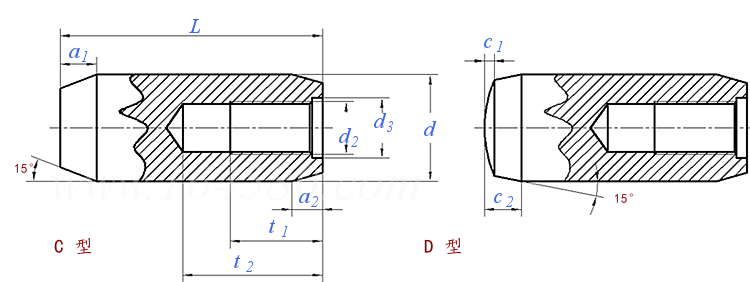

CNS 8779 - 1982 内螺纹圆柱销

尺寸单位: mm
台湾CNS 8779 - 1982 CNS8779 8779CNS 内螺纹圆柱销
CNS 8779 - 1982 内螺纹圆柱销
扫一扫分享
单重计算 公差 公制螺纹极限尺寸 米/英制螺纹对照
千件重及价格计算 千件重 : kg x 元/kg = 元/千件
默认密度 g/cm3
×

选择材料对应密度(g/cm3)

  • 碳钢 7.85
  • 不锈钢 8.1
  • 不锈钢 7.95
  • 不锈钢 7.7
  • 钛合金 4.5
  • 铝合金 2.8
  • 铜 8.89


在此选择或在计算页输入材料密度 密度表
公称长度L 注:选择后获得 相应重量
公称直径
d
6 8 10 12 14 16 20 25 30 40 50 60 70 80
d 最大值
最小值
a1 ≈
a2 ≈
c1 ≈
c2 ≈
d1
t1
t2 最小值
6.012 8.015 10.015 12.018 14.018 16.018 20.021 25.021 30.021 40.025 50.025 60.03 70.03 80.03
6.004 8.006 10.006 12.007 14.007 16.007 20.008 25.008 30.008 40.009 50.009 60.011 70.011 80.011
1.2 1.6 2 2.5 2.5 3 3.5 4 5 6.3 8 10 12 14
0.8 1 1.2 1.6 1.8 2 2.5 3 4 5 6.3 8 10 12
0.6 0.8 1 1.2 1.4 1.6 2 2.5 3 4 5 6 7 8
2.1 2.6 3 3.8 4 4.7 6 6 7 8 10 12 14 16
4.3 5.3 6.4 6.4 8.4 8.4 10.5 17 21 21 25 31 37 43
6 8 10 10 12 12 16 24 30 30 36 40 54 63
10 12 16 16 20 20 25 34 42 42 50 56 71 82
千件钢制重≈kg
- - - - - - - - - - - - - -

引用参考

GB /T 1172 - 1999
黑色金属硬度及强度换算值
GB /T 5267.1 - 2002
镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能
GB /T 193 - 2003
普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)
注：技术数据仅供参考，请以官方原件为准！
