米制六角头法兰面自攻钉 [Table 21] ASME/ANSI B 18.6.5M (T21) - 2000 (R2010)

选择规格尺寸点击↓

ST2.2

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

ST8

ST9.5

M2.5

M3.5

M10

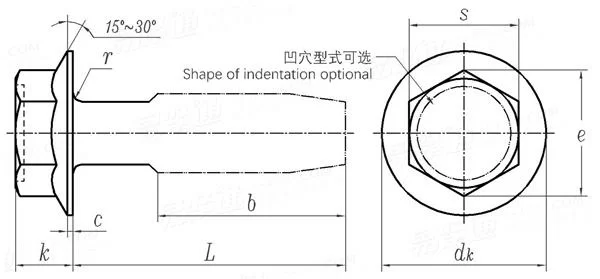

ASME/ANSI B 18.6.5M (T21) - 2000 (R2010) 米制六角头法兰面自攻钉 [Table 21]

尺寸单位: mm

美标ASME/ANSI B18.6.5M (T21) - 2000 (R2010 米制六角头法兰面自攻钉 [Table 21]

扫一扫分享

单重计算公差

螺纹规格
d

ST2.2

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

ST8

ST9.5

P	螺距
s	最大值
s	最小值
e	最小值
d_k	最大值
d_k	最小值
k	最大值
c	最小值
r	最小值
b	最小值
螺纹及末端型式

0.8	1	1.3	1.4	1.6	1.8	1.8	2.1	2.1
3	4	5	5.5	7	7	8	10	13
2.84	3.84	4.82	5.32	6.78	6.78	7.78	9.78	12.72
3.16	4.27	5.36	5.92	7.55	7.55	8.66	10.89	14.16
4.5	6.4	7.5	8.5	10	11.2	12.8	16.8	21
4.1	5.9	6.9	7.8	9.3	10.3	11.8	15.5	19.3
2.2	3.2	3.8	4.3	5.2	6	6.7	8.6	10.7
0.3	0.4	0.5	0.6	0.6	0.8	1	1.2	1.4
0.1	0.1	0.1	0.2	0.2	0.2	0.3	0.4	0.4
13	17	21	25	29	33	38	38	38
AB,B,BF,BT	AB,B,BF,BT	AB,B,BF,BT	AB,B,BF,BT	AB,B,BF,BT	AB,B,BF,BT	AB,B,BF,BT	AB,B,BF,BT	AB,B,BF,BT

螺纹规格
d

M2.5

M3.5

M10

P	螺距
s	最大值
s	最小值
e	最小值
d_k	最大值
d_k	最小值
k	最大值
c	最小值
r	最小值
b	最小值
螺纹及末端型式

0.4	0.45	0.5	0.6	0.7	0.8	1	1.25	1.5
3	3.2	4	5	5.5	7	8	10	13
2.84	3.04	3.84	4.82	5.32	6.78	7.78	9.78	12.72
3.16	3.39	4.27	5.36	5.92	7.55	8.66	10.89	14.16
4.5	5.4	6.4	7.5	8.5	10.6	12.8	16.8	21
4.1	5	5.9	6.9	7.8	9.8	11.8	15.5	19.3
2.2	2.7	3.2	3.8	4.3	5.4	6.7	8.6	10.7
0.3	0.3	0.4	0.5	0.6	0.7	1	1.2	1.4
0.1	0.1	0.1	0.1	0.2	0.2	0.3	0.4	0.4
12	15	18	21	24	30	38	38	38
D,F,T	D,F,T	D,F,T	D,F,T	D,F,T	D,F,T	D,F,T	D,F,T	D,F,T

①,如果最小法兰厚度保持在最小法兰直径，则法兰边缘的轮廓应为可选。法兰的顶面可以是直的，也可以是稍微向上磨圆（凸）的。
②,类似的ISO标准是ISO 10509。

采用标准

ISO 10509 - 2012

六角法兰面自攻螺钉

引用标准

[美标]
ASME B 18.6.5M - 2000 (R2010)

米制自攻螺钉用螺纹及末端型式
Metic threads and points for tapping screws

米制自攻螺钉用螺纹及末端型式

引用参考

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 5280 - 2002

自攻螺钉用螺纹

注：技术数据仅供参考，请以官方原件为准！
