首页 产品与标准 ASME B 18.6.5M (T19) - 2000 米制四方槽盘头自攻螺钉 [Table 19]

米制四方槽盘头自攻螺钉 [Table 19] ASME B 18.6.5M (T19) - 2000

选择规格尺寸 点击↓

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

ST8

ST9.5

M2.5

M3

M3.5

M4

M5

M6

M8

M10

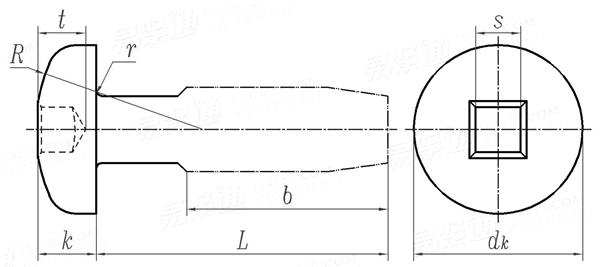

ASME B 18.6.5M (T19) - 2000 米制四方槽盘头自攻螺钉 [Table 19]

尺寸单位: mm
美标ASME B18.6.5M (T19) - 2000 ASME18.6.5M 米制四方槽盘头自攻螺钉 [Table 19]
ASME B 18.6.5M (T19) - 2000 米制四方槽盘头自攻螺钉 [Table 19]
扫一扫分享
公差
螺纹规格
d
ST2.9 ST3.5 ST4.2 ST4.8 ST5.5 ST6.3 ST8 ST9.5
P 螺距
dk 最大值
最小值
k 最大值
最小值
R 参考值
r 最小值
s 参考值
t 参考值
b 最小值
槽号
螺纹及末端型式
1 1.3 1.4 1.6 1.8 1.8 2.1 2.1
5.6 7 8 9.5 11 12 16 20
5.3 6.6 7.6 9.1 10.5 11.5 15.5 19.4
2.4 2.6 3.1 3.7 4 4.6 6 7.5
2.2 2.3 2.8 3.4 3.7 4.3 5.6 7.1
5 6 6.5 8 9 10 13 16
0.1 0.1 0.2 0.2 0.2 0.3 0.4 0.4
1.78 2.31 2.84 2.84 3.38 3.38 4.85 4.85
1.68 2.69 3.23 3.23 4.01 4.01 4.93 4.93
17 21 25 29 33 38 38 38
0 1R 2R 2R 3R 3R 4R 4R
AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT
螺纹规格
d
M2.5 M3 M3.5 M4 M5 M6 M8 M10
P 螺距
dk 最大值
最小值
k 最大值
最小值
R 参考值
r 最小值
s 参考值
t 参考值
b 最小值
槽号
螺纹及末端型式
0.45 0.5 0.6 0.7 0.8 1 1.25 1.5
5 5.6 7 8 9.5 12 16 20
4.7 5.3 6.6 7.6 9.1 11.5 15.5 19.4
2.1 2.4 2.6 3.1 3.7 4.6 6 7.5
1.9 2.2 2.3 2.8 3.4 4.3 5.6 7.1
4 5 6 6.5 8 10 13 16
0.1 0.1 0.1 0.2 0.2 0.3 0.4 0.4
1.78 1.78 2.31 2.84 2.84 3.38 4.85 4.85
1.68 1.68 2.69 3.23 3.23 4.01 4.93 4.93
15 18 21 24 30 38 38 38
0 0 1R 2R 2R 3R 4R 4R
D,F,T D,F,T D,F,T D,F,T D,F,T D,F,T D,F,T D,F,T
替代列表
ANSI/ASME B 18.6.5M - 2000(R2005) ANSI/ASME B 18.6.5M - 2000(2010)

引用标准

1 [美标]
ASME B 18.6.5M - 2000 (R2010)		 米制自攻螺钉用螺纹及末端型式
Metic threads and points for tapping screws
米制自攻螺钉用螺纹及末端型式

引用参考

GB /T 3098.5 - 2016
紧固件机械性能 - 自攻螺钉
GB /T 1172 - 1999
黑色金属硬度及强度换算值
GB /T 5267.1 - 2002
镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能
GB /T 193 - 2003
普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)
GB /T 5280 - 2002
自攻螺钉用螺纹
注：技术数据仅供参考，请以官方原件为准！
