BSW/BSF 开槽盘头螺钉 - B.S.W. & B.S.F. 螺纹 [Table 5] BS 450 - 1958

选择规格尺寸点击↓

1/8

3/16

7/32

1/4

5/16

3/8

7/16

1/2

9/16

5/8

3/4

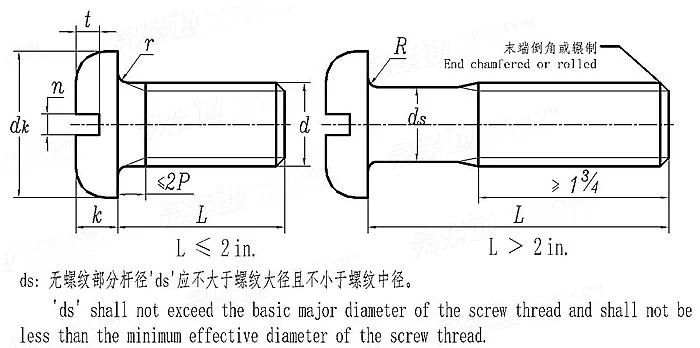

BS 450 - 1958 BSW/BSF 开槽盘头螺钉 - B.S.W. & B.S.F. 螺纹 [Table 5]

尺寸单位: inch

英标BS 450 - 1958 BS450 450BS BSW/BSF 开槽盘头螺钉 - B.S.W. & B.S.F. 螺纹 [Table 5]

扫一扫分享

公差最小破坏扭矩牌号等级

螺纹尺寸
d

1/8

3/16

7/32

1/4

5/16

3/8

7/16

1/2

9/16

5/8

3/4

d
PP	牙数/英寸	B.S.W.
		B.S.F.
d_k	最大值
	最小值
k	最大值
	最小值
n	最大值
	最小值
t	公称
r	粗杆	最大值
R	细杆	最大值

0.1250	0.1875	0.2188	0.2500	0.3125	0.3750	0.4375	0.5000	0.5625	0.6250	0.7500
40	24	/	20	18	16	14	12	(12)	11	10
/	(32)	(28)	26	22	20	18	16	(16)	14	12
0.245	0.373	0.425	0.492	0.615	0.740	0.863	0.987	1.031	1.125	1.250
0.231	0.357	0.407	0.473	0.594	0.716	0.838	0.958	0.999	1.090	1.209
0.075	0.110	0.125	0.144	0.178	0.212	0.247	0.281	0.315	0.350	0.419
0.065	0.099	0.112	0.130	0.162	0.195	0.227	0.260	0.293	0.325	0.390
0.039	0.050	0.055	0.061	0.071	0.082	0.093	0.104	0.115	0.126	0.148
0.032	0.042	0.046	0.051	0.061	0.072	0.082	0.092	0.103	0.113	0.134
0.040	0.061	0.069	0.078	0.095	0.112	0.129	0.145	0.162	0.179	0.213
0.010	0.015	0.015	0.031	0.031	0.031	0.031	0.031	0.031	0.031	0.031
0.020	0.025	0.025	0.040	0.045	0.045	0.050	0.050	0.050	0.055	0.060
