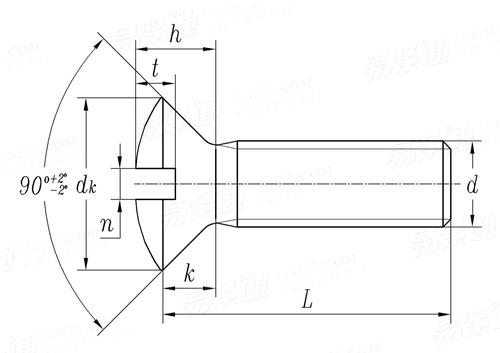

开槽半沉头螺钉 QJ 2388 - 1992

选择规格尺寸 点击↓

M2

M2.5

M3

M4

M5

M6

括号内尺寸为非优选
QJ  2388 - 1992 开槽半沉头螺钉

尺寸单位: mm
航天QJ 2388 - 1992 QJ2388 2388QJ 开槽半沉头螺钉
QJ  2388 - 1992 开槽半沉头螺钉
扫一扫分享
螺纹规格
d
M2 M2.5 M3 M4 M5 M6
P 螺距
dk 最大值
最小值
h 最大值
最小值
t 最大值
最小值
n 最大值
最小值
k 参考
0.4 0.45 0.5 0.7 0.8 1
4.4 5 5.8 8 9.5 11.5
4.1 4.7 5.5 7.64 9.14 11.07
1.8 2.1 2.4 3.1 3.6 4.3
1.55 1.85 2.15 2.8 3.3 4
0.96 1.06 1.35 1.75 2.05 2.45
0.8 0.9 1.1 1.5 1.8 2.2
0.64 0.74 0.96 1.25 1.45 1.75
0.5 0.6 0.8 1 1.2 1.5
1.3 1.4 1.7 2.2 2.5 3

技术条件和引用标准

材料
表面处理
其余技术要求
HPb59-1
钝化
QJ 2397.1
注:技术数据仅供参考,请以官方原件为准!
